HomeShopSafety EquipmentLight CurtainsXUSL4E3BB081LWH Telemecanique

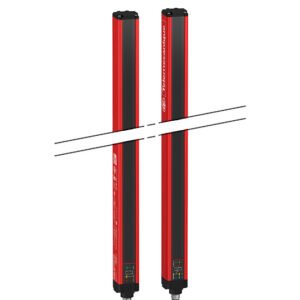

Telemecanique XUSL4E3BB081LWH Safety light curtain type 4XUSL4E - industify.com
Telemecanique

XUSL4E3BB081LWH Telemecanique

SKU: XUSL4E3BB081LWH

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Product or component type

Safety light curtain type 4
Device short name

XUSL4E
Output type

2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application

For body protection
Type of start

Manual
Control type

Selected by wiring
Detection system

Transmitter-receiver system
Response Time

3 ms
Kit composition

1 PVC cable(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s), silicone o-ring(s)
Emission

IR LED 950 nm
[Us] rated supply voltage

24 V DC +/- 20 %
Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1
Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver
Output voltage

24 V
Output circuit type

DC
Voltage drop

0.5 V
Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver
Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver
Type of cable

Unshielded cable AWG 22 10-10 m
Function available

anti-condensation system, LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test
Marking

CE
material

PMMA (polymethyl methacrylate): tube, PVC (polyvinyl chloride): cable, stainless steel AISI 316L: sealing plug
Housing colour

Red RAL 3000
Fixing mode

By fixing brackets
Offer type

Long distance
Provided equipment

With heating system
Directives

98/37/EEC – machinery
Product certifications

Ecolab
Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1
Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2
Safety reliability data

PFHd = 7.55E-9 1/h conforming to IEC 61508
IP degree of protection

IP69K
Shock resistance

10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

13.5000 CENTIMETER
Package 1 width

19.5000 CENTIMETER
Package 1 length

90.0000 CENTIMETER
Package 1 weight

5.7490 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Safety Light Curtain Type 4XUSL4E2

The Telemecanique Safety Light Curtain Type 4XUSL4E2 ensures maximum protection for body safeguarding in various applications. With solid-state PNP outputs and 24 VDC power supply, this device offers reliable performance conforming to international safety standards. The quick response time of 3 ms enhances safety measures in hazardous environments, allowing for efficient detection and control of potential risks.

  • Ensures body protection in diverse applications
  • Solid-state PNP outputs for reliable performance
  • Quick response time of 3 ms for enhanced safety
  • Conforms to international safety standards

The Telemecanique Safety Light Curtain Type 4XUSL4E2 comes complete with adjustable mounting brackets, user guide with certificate of conformity, and PVC cables for easy installation. The device’s high safety level and resistance to environmental factors provide users with peace of mind while maintaining operational efficiency in industrial settings.

  • Easy installation with adjustable mounting brackets
  • High safety level and environmental resistance for peace of mind
  • Efficient operation in various industrial environments
