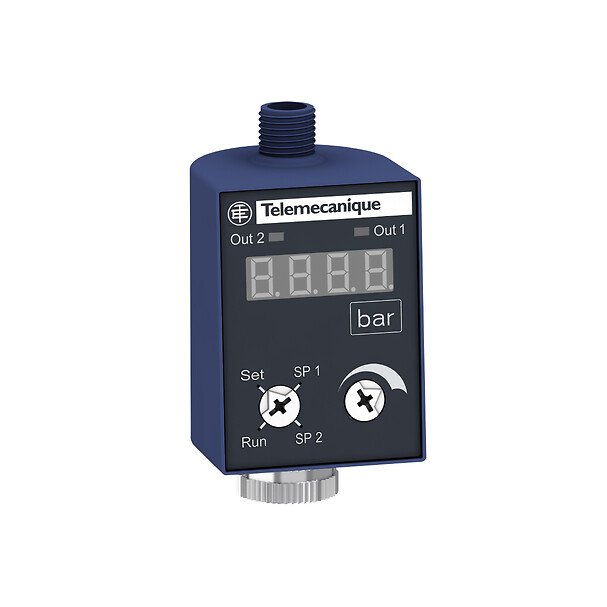

Name: ZMLPA2N0SH Telemecanique | Industify
Brand: Telemecanique
SKU: ZMLPA2N0SH
Price: 1.00 USD
Availability: InStock

Range of product

OsiSense XM

Product or component type

Electronic pressure sensors

Device short name

ZMLP

Display range

-14.5…6000

[Us] rated supply voltage

24 V DC SELV (voltage limits: 17-33 V)

Current consumption

= 50 mA

Electrical connection

2 pins, 4 pins, Female connector M12, Male connector M12

Type of output signal

Discrete

Discrete output type

Solid state NPN, 2 NO/NC programmable

Switching function

Hysteresis

Voltage drop

2.0000 VOLT

Marking

Front material

Polyester

Housing material

PBT Valox

Operating position

Any position

Protection type

Reverse polarity

Response time on output

= 3 ms for discrete output

Display Type

4 digits 7 segments

Local signalling

2 LEDs (yellow) for light ON when switch is actuated

Response Time

300 ms

Delay first up

100.0000 MILLISECOND

Accuracy

= – 0.1 % of the measuring range

Measurement accuracy

= 1 % of the measuring range

Display accuracy

= 1 % of the measuring range

Product certifications

CULus

Standards

IEC 61000-6-4

IP degree of protection

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050

Vibration resistance

5 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn conforming to IEC 60068-2-27

Electromagnetic compatibility

4 kV contact conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, immunity to conducted RF disturbances: 10 V 0.15…80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, Susceptibility to electromagnetic fields: 10 V/m 80…2000 MHz conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.3000 CENTIMETER

Package 1 width

4.7000 CENTIMETER

Package 1 length

8.7000 CENTIMETER

Package 1 weight

105.0000 GRAM

Unit type of package 2

S01

Package 2 height

15.0000 CENTIMETER

Package 2 width

15.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

2.7080 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Electronic Pressure Sensors: Enhancing Precision and Performance

Experience optimal accuracy: With a measurement accuracy of -0.1% and display accuracy of 1%, users can rely on precise readings for critical applications, ensuring efficiency and reliability.

Enhanced durability: Built with IP67, IP65, and IP69K protection ratings, this device is resistant to water, dust, and high-pressure washdowns, making it suitable for rugged industrial environments.

Improved response time: The quick 3ms response time on output along with local signaling LEDs enhances operational efficiency, providing prompt feedback for swift decision-making.
Easy installation: Featuring a female Connector M12 with 2 pins and a male Connector M12 with 4 pins, users can set up this device seamlessly, saving time and resources.

By prioritizing accuracy, durability, and efficiency, Telemecanique’s Electronic Pressure Sensors offer a reliable solution for applications requiring precise pressure monitoring. With quick response times, easy installation, and robust construction, this device ensures superior performance in demanding industrial settings.
