HomeShopPressure SensorsGauge Pressure SensorsZMLPA1N2SH Telemecanique

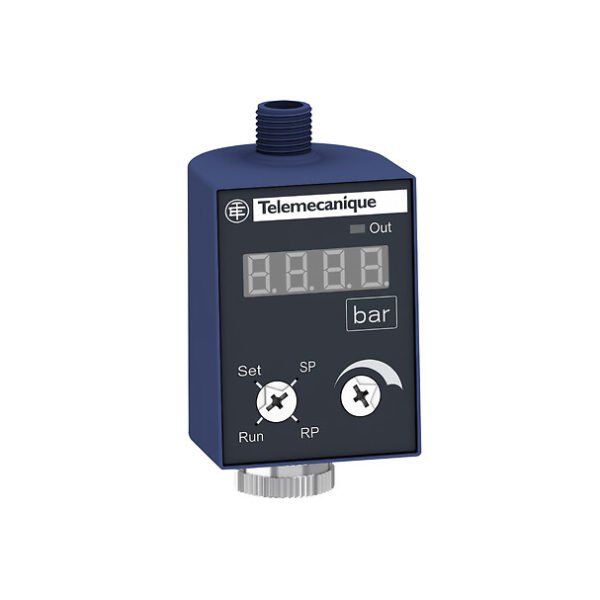

Telemecanique ZMLPA1N2SH OsiSense XMElectronic pressure sensors - industify.com
Telemecanique

ZMLPA1N2SH Telemecanique

SKU: ZMLPA1N2SH

Add to wishlist Add to compare
Categories: , , , , Tag:
Product information
Range of product

OsiSense XM
Product or component type

Electronic pressure sensors
Device short name

ZMLP
Display range

-14.5…6000
[Us] rated supply voltage

24 V DC SELV (voltage limits: 17-33 V)
Current consumption

= 50 mA
Electrical connection

2 pins, 4 pins, Female connector M12, Male connector M12
Type of output signal

Analogue + discrete
Analogue output function

4…20 mA
Discrete output type

NO/NC programmable, Solid state NPN
Switching function

Hysteresis
Voltage drop

2.0000 VOLT
Marking

CE
Front material

Polyester
Housing material

PBT Valox
Operating position

Any position
Protection type

Reverse polarity
Response time on output

= 3 ms for analog output, = 3 ms for discrete output
Display Type

4 digits 7 segments
Local signalling

1 LED (yellow) for light ON when switch is actuated
Response Time

300 ms
Delay first up

100.0000 MILLISECOND
Accuracy

= – 0.1 % of the measuring range
Measurement accuracy

= 1 % of the measuring range
Display accuracy

= 1 % of the measuring range
Product certifications

CULus
Standards

IEC 61000-6-4
IP degree of protection

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Vibration resistance

5 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Shock resistance

25 gn conforming to IEC 60068-2-27
Electromagnetic compatibility

4 kV contact conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, immunity to conducted RF disturbances: 10 V 0.15…80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, Susceptibility to electromagnetic fields: 10 V/m 80…2000 MHz conforming to IEC 61000-4-3
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

4.3000 CENTIMETER
Package 1 width

4.7000 CENTIMETER
Package 1 length

8.7000 CENTIMETER
Package 1 weight

105.0000 GRAM
Unit type of package 2

S01
Package 2 height

15.0000 CENTIMETER
Package 2 width

15.0000 CENTIMETER
Package 2 length

40.0000 CENTIMETER
Package 2 weight

2.7060 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Electronic Pressure Sensor – ZMLPA1N2SH

Enhance Efficiency: The Telemecanique Electronic Pressure Sensor offers a wide range of precise measurements and reliable performance. Its quick response time and high accuracy ensure optimal results in various applications.

Durable Construction: Built with high-quality materials and designed for flexibility, this sensor can be positioned in any orientation. The robust housing and front panel ensure longevity and resistance to harsh environmental conditions.

  • Improved Monitoring: With features like analogue and discrete output signals, this sensor provides clear and easily interpretable data for effective monitoring and control of pressure levels.
  • Easy Installation: The included connectors and simple electrical connections make setup hassle-free, saving time and effort for installation and maintenance tasks.
