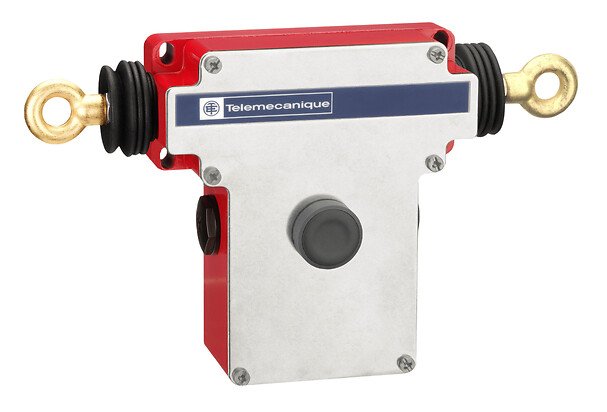

Name: XY2CEDA190 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CEDA190
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Dual emergency stop rope pull switch

Device short name

XY2CED

Housing colour

Red RAL 3000

Overvoltage category

Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Bellow material

Nitril

Body Material

Zamak

Cover material

Stainless steel

Reset

By flush push-button

Contacts type and composition

2 x (1 NC + 1 NO)

Contact operation

Slow-break

Trigger cable anchor point

RH and LH sides

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3

Terminals description ISO n°1

(13-14)NO

Compatibility code

XY2CED

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, EAC, UL category NISD emergency stop devices

Protective treatment

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10.2000 CENTIMETER

Package 1 width

15.9000 CENTIMETER

Package 1 length

30.9000 CENTIMETER

Package 1 weight

1.9600 KILOGRAM

Unit type of package 2

S03

Package 2 height

30.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

8.3690 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Emergency Stop Rope Pull Switch

Providing a reliable safety solution for industrial settings, the Telemecanique Emergency Stop Rope Pull Switch offers dual emergency stop capabilities for enhanced protection. With easy installation and a durable construction featuring Nitril and Zamak materials, this device ensures long-term reliability in demanding environments. The slow-break contact operation and positive opening mechanism enhance safety measures, minimizing risks during emergency situations.

Ensures quick and efficient emergency response
Durable construction for long-lasting reliability
Provides dual emergency stop functionality
Positive opening mechanism for added safety
Easy installation for convenience

With compliance with various safety standards and certifications, including CE and UL, users can trust the effectiveness and quality of this emergency stop switch. The IP66 degree of protection ensures resistance to dust and water, making it suitable for diverse industrial applications. Trust in the Telemecanique Emergency Stop Rope Pull Switch for robust safety measures in demanding work environments.
