HomeShopSwitches and ActuatorsCable Pull SwitchesXY2CE2C250TK Telemecanique

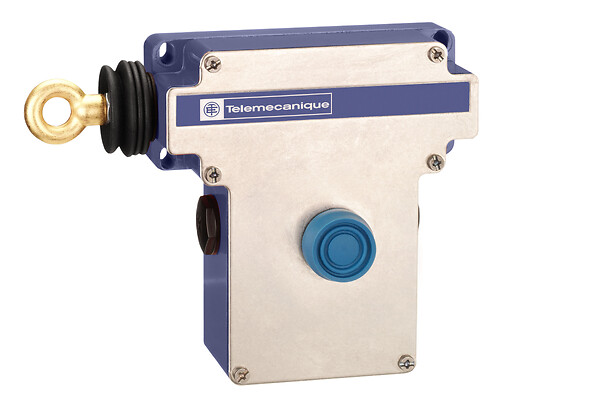

Telemecanique XY2CE2C250TK Telemecanique Emergency stop rope pull switches XY2CLatching emergency stop rope pull switch - industify.com
Telemecanique

XY2CE2C250TK Telemecanique

SKU: XY2CE2C250TK

Add to wishlist Add to compare
Categories: , Tag:
Product information
Range of product

Telemecanique Emergency stop rope pull switches XY2C
Product or component type

Latching emergency stop rope pull switch
Device short name

XY2CE
Housing colour

Red RAL 3000
Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling

Without pilot light
Body Material

Zamak
Bellow material

Nitril
Cover material

Stainless steel
Reset

By booted push-button
Contacts type and composition

1 NC + 1 NO
Contact operation

Slow-break
Trigger cable anchor point

LH side
Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking

CE
Positive opening

With conforming to EN/IEC 60947-5-1
Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1

(13-14)NO
Compatibility code

XY2CE
Standards

Work equipment directive 2009/104/EC
Product certifications

CCC, CSA, UL category NISD emergency stop devices
Protective treatment

TC
Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection

IP66 conforming to IEC 60529
Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

9.0000 CENTIMETER
Package 1 width

15.0000 CENTIMETER
Package 1 length

20.0000 CENTIMETER
Package 1 weight

1.5350 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Emergency Stop Rope Pull Switch

Designed for maximum safety and efficiency, the Telemecanique Emergency Stop Rope Pull Switch ensures quick and reliable response in emergency situations. With a latching mechanism and red RAL 3000 housing color, this device complies with Class I standards, providing peace of mind in critical environments. The slow-break contact operation and screw clamp terminals offer secure connections, contributing to a high safety level and reliability.

  • Easy to Install and Use: The LH side trigger cable anchor point allows for convenient installation and operation.
  • Robust Construction: Made of durable materials like Zamak and stainless steel, this emergency stop switch is built to withstand the most demanding conditions.
  • Accurate and Dependable: With the ability to reach SIL 3 safety integrity level, this switch ensures precise and consistent performance for enhanced safety measures.
