HomeShopSwitches and ActuatorsCable Pull SwitchesXY2CE2C250H7TK Telemecanique
Telemecanique XY2CE2C250H7TK Telemecanique Emergency stop rope pull switches XY2CLatching emergency stop rope pull switch - industify.com
Telemecanique

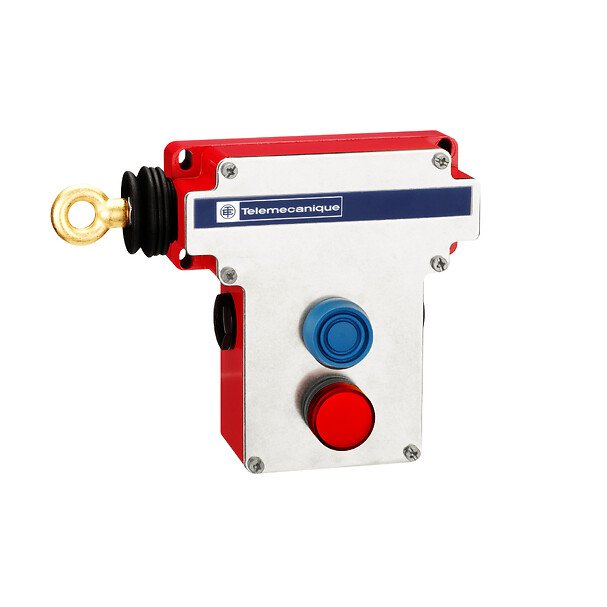

XY2CE2C250H7TK Telemecanique

SKU: XY2CE2C250H7TK

Add to wishlist Add to compare
Categories: , Tag:
Product information
Range of product

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Bellow material

Nitril

Cover material

Stainless steel

Reset

By booted push-button

Contacts type and composition

1 NC + 1 NO

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

CE

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(13-14)NO

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

TC

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.2000 CENTIMETER

Package 1 width

19.6000 CENTIMETER

Package 1 length

14.8000 CENTIMETER

Package 1 weight

1.5000 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Emergency Stop Rope Pull Switch

The Telemecanique Emergency stop rope pull Switch XY2C offers a reliable safety solution for industrial environments, ensuring quick and efficient emergency stops when necessary. With its latching mechanism and red RAL 3000 housing color, this device stands out in any setting while providing peace of mind for operators and supervisors.

Designed for ease of use, this switch features a slow-break contact operation for added safety and a stainless steel cover material for durability. Its IP66 degree of protection ensures resistance to dust and water, making it ideal for harsh conditions.

  • Ensures quick and efficient emergency stops
  • Provides peace of mind in industrial settings
  • Features latching mechanism and durable construction
  • IP66 degree of protection for resistance to dust and water
