XY2CE2C250 Telemecanique

Name: XY2CE2C250 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CE2C250
Price: 1.00 USD
Availability: InStock

SKU: XY2CE2C250

Add to wishlist Add to compare

Categories: Cable Pull Switches, Switches and Actuators Tag: Telemecanique Emergency stop rope pull switches XY2C

Product information

Range of product	Telemecanique Emergency stop rope pull switches XY2C
Product or component type	Latching emergency stop rope pull switch
Device short name	XY2CE
Housing colour	Red RAL 3000
Overvoltage category	class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling	Without pilot light
Body Material	Zamak
Bellow material	Nitril
Cover material	Stainless steel
Reset	By booted push-button
Contacts type and composition	1 NC + 1 NO
Contact operation	Slow-break
Trigger cable anchor point	LH side
Connections - terminals	1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Safety level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data	B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking	CE
Positive opening	With conforming to EN/IEC 60947-5-1
Resistance across terminals	25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1	(13-14)NO
Standards	Work equipment directive 2009/104/EC
Product certifications	CCC, CSA, UL category NISD emergency stop devices
Protective treatment	TC
Vibration resistance	10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection	IP66 conforming to IEC 60529
Shock resistance	50 gn 11 ms conforming to EN/IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.2000 CENTIMETER
Package 1 width	14.8000 CENTIMETER
Package 1 length	19.6000 CENTIMETER
Package 1 weight	1.4500 KILOGRAM
Brand	Telemecanique

Description

Description

Description

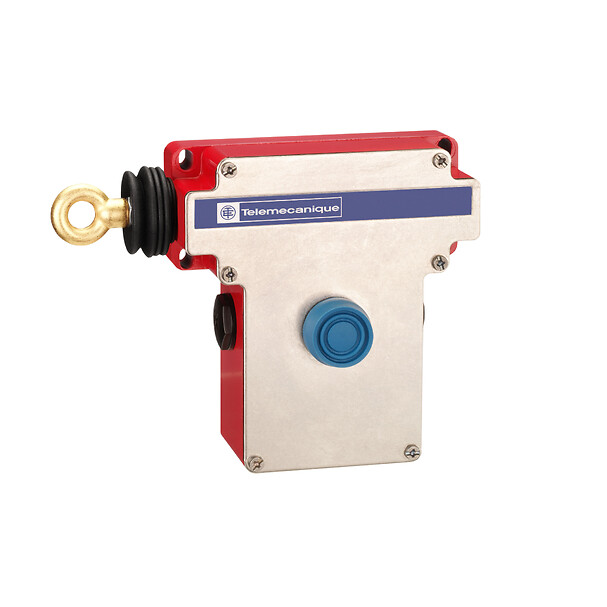

Telemecanique Emergency Stop Rope Pull Switch XY2C

Ensure safety in your industrial environment with the Telemecanique Emergency Stop Rope Pull Switch XY2C. This latching emergency stop device is designed to quickly and effectively halt machinery operations in emergency situations, providing peace of mind for operators and workers. The bright red RAL 3000 housing color makes it easily identifiable for rapid access during critical moments.

Conforming to stringent safety standards like EN/IEC 61140 and NF C 20-030
With a slow-break contact operation for reliable performance
IP66 degree of protection for durability in harsh industrial environments

Invest in the Telemecanique Emergency Stop Rope Pull Switch XY2C to enhance the overall safety and efficiency of your operational processes, prioritizing the well-being of your team and the protection of your equipment.
