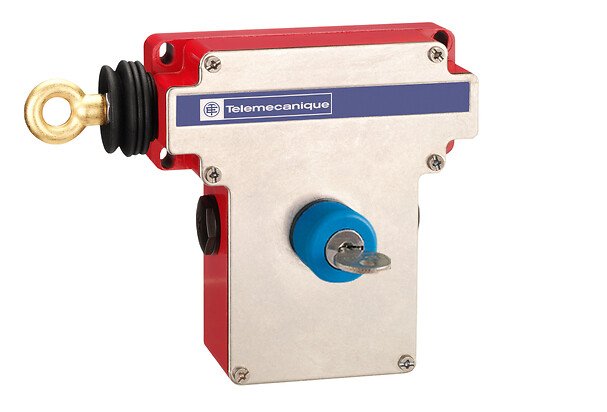

Telemecanique XY2CE2A570 Latching emergency stop rope pull switchXY2CE - industify.com
Telemecanique

XY2CE2A570 Telemecanique

SKU: XY2CE2A570

Add to wishlist Add to compare
Categories: , Tag:
Product information
Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Bellow material

Nitril

Cover material

Stainless steel

Reset

By key-release push-button

Contacts type and composition

2 NC

Key number

421

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

CE

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(11-22)NC

Compatibility code

XY2CE

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

TC

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

IP degree of protection

IP65 conforming to IEC 60529

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.8000 CENTIMETER

Package 1 width

20.0000 CENTIMETER

Package 1 length

15.0000 CENTIMETER

Package 1 weight

1.5850 KILOGRAM

Unit type of package 2

S03

Package 2 height

30.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

19.4400 KILOGRAM

Unit type of package 3

P06

Package 3 height

75.0000 CENTIMETER

Package 3 width

80.0000 CENTIMETER

Package 3 length

60.0000 CENTIMETER

Package 3 weight

163.5200 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique XY2CE2A570 Latching Emergency Stop Rope Pull Switch

Enhance Safety: The Telemecanique XY2CE2A570 is a latching emergency stop rope pull switch designed to prioritize user safety and prevent potential hazards in industrial settings. With its slow-break contact operation and positive opening feature, this device ensures reliable emergency shutdowns in critical situations, offering peace of mind to operators and workers.

Durable Construction: Constructed with high-quality materials such as Zamak, stainless steel, and nitril, this emergency stop switch is built to withstand tough industrial environments. The IP65 degree of protection, vibration resistance, and shock resistance further enhance the durability of the device, making it a reliable choice for demanding applications.

  • Easy Installation and Maintenance: With screw clamp terminals and a compact design, the XY2CE2A570 switch offers straightforward installation and easy maintenance, reducing downtime and ensuring efficient operation in industrial settings.
