HomeShopSwitches and ActuatorsCable Pull SwitchesXY2CE2A496 Telemecanique

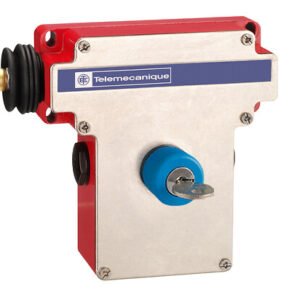

Telemecanique XY2CE2A496 Latching emergency stop rope pull switchXY2CE - industify.com
Telemecanique

XY2CE2A496 Telemecanique

SKU: XY2CE2A496

Add to wishlist Add to compare
Categories: , Tag:
Product information
Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By key-release push-button

Key number

421

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

CE

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(11-22)NC

Compatibility code

XY2CE

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

TC

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

IP degree of protection

IP65 conforming to IEC 60529

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.0000 CENTIMETER

Package 1 width

15.0000 CENTIMETER

Package 1 length

20.0000 CENTIMETER

Package 1 weight

1.6390 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique XY2CE2A496 Latching Emergency Stop Rope Pull Switch

The Telemecanique XY2CE2A496 is a latching emergency stop rope pull switch designed to provide reliable and immediate safety in industrial settings. With its red housing color and stainless steel cover material, this device ensures high visibility and durability in demanding environments. The SIL 3 and category 4 safety certifications offer peace of mind knowing that the equipment conforms to the highest safety standards.

  • Ensures immediate safety in emergencies
  • High visibility with red color
  • Durable stainless steel construction
  • Compliant with SIL 3 and category 4 safety standards

With an IP65 degree of protection and resistance to shock and vibration, this emergency stop switch is built to withstand harsh conditions. The positive opening and key-release push-button design provide added security and ease of use for operators. Overall, the Telemecanique XY2CE2A496 offers peace of mind and reliable safety in industrial settings where safety is paramount.
