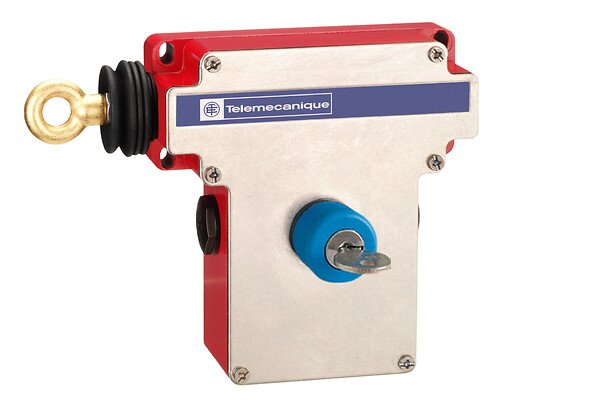

Telemecanique XY2CE2A450 Latching emergency stop rope pull switchXY2CE - industify.com
Telemecanique

XY2CE2A450 Telemecanique

SKU: XY2CE2A450

Add to wishlist Add to compare
Categories: , Tag:
Product information
Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By key-release push-button

Key number

421

Contacts type and composition

1 NC + 1 NO

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

CE

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(13-14)NO

Compatibility code

XY2CE

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

TC

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP65 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.0000 CENTIMETER

Package 1 width

20.2000 CENTIMETER

Package 1 length

16.0000 CENTIMETER

Package 1 weight

1.5840 KILOGRAM

Unit type of package 2

S03

Package 2 height

30.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

10.3990 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique XY2CE2A450 Emergency Stop Switch

The Telemecanique XY2CE2A450 Emergency Stop Switch offers reliable and safe operation in industrial environments. With a latching emergency stop rope pull design, this device ensures quick and efficient shutdown in case of emergency situations. The red housing color provides high visibility for easy identification and access during critical times.

  • Features a slow-break contact operation for added safety
  • Equipped with screw clamp terminals for easy installation and maintenance
  • Complies with EN/IEC standards for reliable performance

The Telemecanique XY2CE2A450 Emergency Stop Switch is designed to meet stringent safety requirements and provide peace of mind in demanding work environments. Whether used in manufacturing facilities or machinery applications, this device ensures secure and efficient emergency stop functionality.
