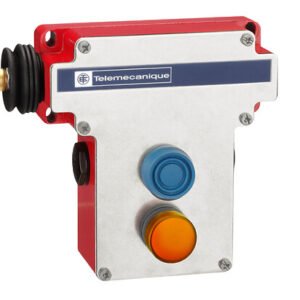

Telemecanique XY2CE2A297 Latching emergency stop rope pull switchXY2CE - industify.com

XY2CE2A297 Telemecanique

Name: XY2CE2A297 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CE2A297
Price: 1.00 USD
Availability: InStock

SKU: XY2CE2A297

Add to wishlist Add to compare

Categories: Cable Pull Switches, Switches and Actuators Tag: Latching emergency stop rope pull switch

Product information

Product or component type	Latching emergency stop rope pull switch
Device short name	XY2CE
Housing colour	Red RAL 3000
Overvoltage category	class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling	230 V, With pilot light, yellow
Body Material	Zamak
Cover material	Stainless steel
Reset	By booted push-button
[Us] rated supply voltage	230…240 V AC
Contacts type and composition	2 NC + 2 NO
Contact operation	Slow-break
Trigger cable anchor point	LH side
Connections - terminals	1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Light block supply	Direct
Safety level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data	B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking	CE
Positive opening	With conforming to EN/IEC 60947-5-1
Resistance across terminals	25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1	(13-14)NO
Compatibility code	XY2CE
Standards	Work equipment directive 2009/104/EC
Product certifications	CCC, CSA, UL category NISD emergency stop devices
Protective treatment	TC
Vibration resistance	10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection	IP66 conforming to IEC 60529
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.0000 CENTIMETER
Package 1 width	16.0000 CENTIMETER
Package 1 length	20.2000 CENTIMETER
Package 1 weight	1.5780 KILOGRAM
Unit type of package 2	S03
Package 2 height	30.0000 CENTIMETER
Package 2 width	30.0000 CENTIMETER
Package 2 length	40.0000 CENTIMETER
Package 2 weight	10.0580 KILOGRAM
Brand	Telemecanique

Description

Description

Description

Telemecanique Latching Emergency Stop Rope Pull Switch

Enhance workplace safety with the Telemecanique Latching Emergency Stop Rope Pull Switch. Designed with a red housing for easy visibility and quick access in case of emergencies, this device ensures immediate shutdown of equipment to prevent accidents. The inclusion of a pilot light in yellow provides clear signaling of the system’s status, improving operational efficiency and reducing risks.

Designed for rapid and reliable emergency response
High-quality materials for durability and long-term use
Ensures compliance with safety standards and certifications

With terminals designed for secure connections and positive opening for safety, this emergency stop switch offers peace of mind in high-risk work environments. The Telemecanique Latching Emergency Stop Rope Pull Switch is an essential component for ensuring worker safety and preventing potential hazards in industrial settings.
