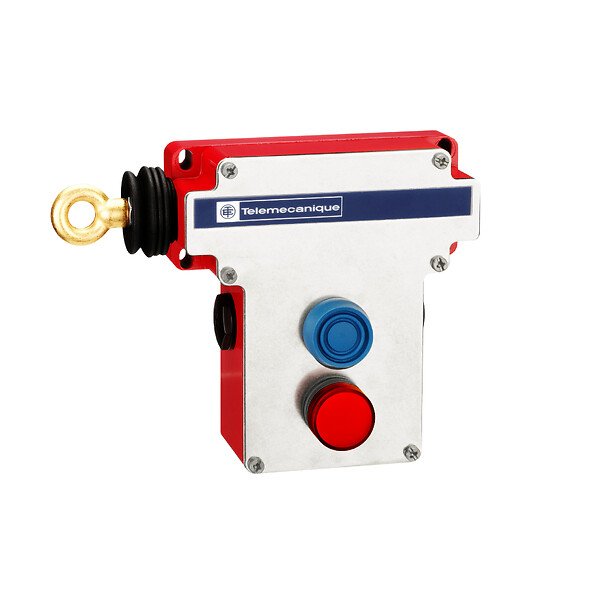

Telemecanique XY2CE2A296H7 Telemecanique Emergency stop rope pull switches XY2CLatching emergency stop rope pull switch - industify.com
Telemecanique

XY2CE2A296H7 Telemecanique

SKU: XY2CE2A296H7

Add to wishlist Add to compare
Categories: , Tag:
Product information
Range of product

Telemecanique Emergency stop rope pull switches XY2C
Product or component type

Latching emergency stop rope pull switch
Device short name

XY2CE
Housing colour

Red RAL 3000
Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling

24…130 V, red, With pilot light
Body Material

Zamak
Cover material

Stainless steel
Reset

By booted push-button
[Us] rated supply voltage

24…130 V AC/DC
Contacts type and composition

2 NC + 2 NO
Contact operation

Slow-break
Trigger cable anchor point

LH side
Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Light block supply

Direct
Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking

CE
Positive opening

With conforming to EN/IEC 60947-5-1
Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1

(13-14)NO
Compatibility code

XY2CE
Standards

Work equipment directive 2009/104/EC
Product certifications

CCC, CSA, UL category NISD emergency stop devices
Protective treatment

TC
Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection

IP66 conforming to IEC 60529
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

9.0000 CENTIMETER
Package 1 width

16.0000 CENTIMETER
Package 1 length

20.0000 CENTIMETER
Package 1 weight

1.6540 KILOGRAM
Unit type of package 2

S03
Package 2 height

30.0000 CENTIMETER
Package 2 width

30.0000 CENTIMETER
Package 2 length

40.0000 CENTIMETER
Package 2 weight

10.4950 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Emergency Stop Rope Pull Switch XY2C

Ensure Safety and Compliance: The Telemecanique Emergency Stop Rope Pull Switch XY2C is designed to meet Class I standards, providing a reliable safety solution that conforms to EN/IEC regulations. With CE certification and high resistance levels, this switch offers peace of mind in ensuring safety compliance in work environments.

Easy to Operate: Featuring a latching mechanism and a pilot light for clear indication, this switch is user-friendly and intuitive. The slow-break contact operation ensures a smooth and controlled emergency stop process, allowing for quick and effective intervention in critical situations.

Durable and Reliable: Constructed with high-quality materials like Zamak and stainless steel, this Emergency Stop Rope Pull Switch is built to withstand harsh industrial conditions. With IP66 protection and high vibration and shock resistance, this switch offers longevity and consistent performance in demanding environments.
