Name: XY2CE2A296FWB24 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CE2A296FWB24
Price: 1.00 USD
Availability: InStock

Range of product

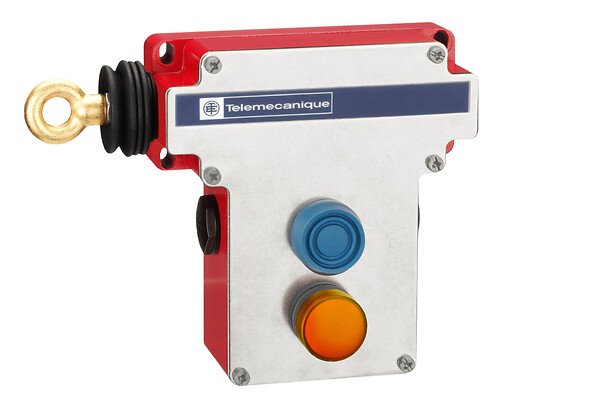

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

24…130 V, red, With pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By booted push-button

[Us] rated supply voltage

24…130 V AC/DC

Contacts type and composition

2 NC + 2 NO

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Light block supply

Direct

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(13-14)NO

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

15.2400 CENTIMETER

Package 1 width

25.4000 CENTIMETER

Package 1 length

22.8600 CENTIMETER

Package 1 weight

1.3610 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Emergency Stop Rope Pull Switch

The Telemecanique Emergency Stop Rope Pull Switch provides a reliable and efficient safety solution for industrial environments. With its latching emergency stop feature and pilot light for visual indication, this device ensures quick and decisive intervention in critical situations. The Zamak and stainless steel construction guarantees durability and longevity, while the positive opening mechanism enhances safety by ensuring the contacts separate in emergency scenarios.

Ensures immediate response in emergency situations
High-quality materials for long-term reliability
Visual indication for quick identification of status

The Telemecanique Emergency Stop Rope Pull Switch complies with essential safety standards, including EN/IEC 61140 and EN/ISO 13849-1, offering users peace of mind and confidence in their safety measures. The IP66 degree of protection and shock resistance make this device suitable for diverse industrial applications where safety is paramount. With a focus on reliability and user safety, Telemecanique delivers a trusted solution for emergency stop requirements in industrial settings.
