HomeShopSwitches and ActuatorsCable Pull SwitchesXY2CE2A250 Telemecanique

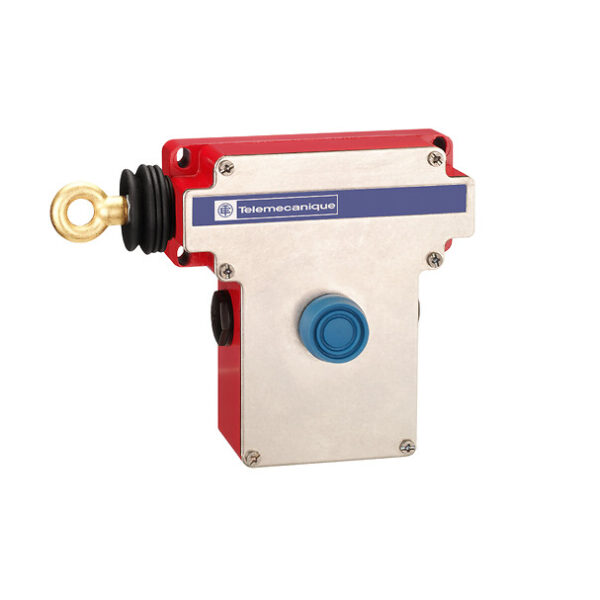

Telemecanique XY2CE2A250 Latching emergency stop rope pull switchXY2CE - industify.com
Telemecanique

XY2CE2A250 Telemecanique

SKU: XY2CE2A250

Add to wishlist Add to compare
Categories: , Tag:
Product information
Product or component type

Latching emergency stop rope pull switch
Device short name

XY2CE
Housing colour

Red RAL 3000
Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling

Without pilot light
Body Material

Zamak
Cover material

Stainless steel
Reset

By booted push-button
Contacts type and composition

1 NC + 1 NO
Contact operation

Slow-break
Trigger cable anchor point

LH side
Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking

CE
Positive opening

With conforming to EN/IEC 60947-5-1
Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1

(13-14)NO
Compatibility code

XY2CE
Standards

Work equipment directive 2009/104/EC
Product certifications

CCC, CSA, UL category NISD emergency stop devices
Protective treatment

TC
Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection

IP66 conforming to IEC 60529
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

9.0000 CENTIMETER
Package 1 width

16.0000 CENTIMETER
Package 1 length

20.2000 CENTIMETER
Package 1 weight

1.5510 KILOGRAM
Unit type of package 2

S03
Package 2 height

30.0000 CENTIMETER
Package 2 width

30.0000 CENTIMETER
Package 2 length

40.0000 CENTIMETER
Unit type of package 3

P06
Package 2 weight

9.7400 KILOGRAM
Package 3 height

75.0000 CENTIMETER
Package 3 width

60.0000 CENTIMETER
Package 3 length

80.0000 CENTIMETER
Package 3 weight

88.6520 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique XY2CE2A250 Emergency Stop Rope Pull Switch

The Telemecanique XY2CE2A250 Emergency Stop Rope Pull Switch ensures immediate safety in work environments where quick and efficient emergency stop functionality is crucial. This device features a latching mechanism and a bright red housing for easy identification in times of crisis. With a durable construction using zamak and stainless steel, this emergency stop switch guarantees reliable performance even in demanding industrial settings.

  • The slow-break contact operation provides a smooth and controlled stop to prevent sudden equipment halts.
  • The screw clamp terminals allow for secure and easy installation, ensuring proper functionality.
  • Meeting the highest safety standards, including EN/ISO certifications, the XY2CE2A250 offers peace of mind in critical situations.

The Telemecanique XY2CE2A250 Emergency Stop Rope Pull Switch is designed to provide ultimate safety and reliability in emergency stop scenarios, making it an essential component for any work equipment requiring quick and effective shutdown capabilities.
