Name: XY2CE2A190H7 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CE2A190H7
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By booted push-button

Contacts type and composition

1 NC + 1 NO

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(13-14)NO

Compatibility code

XY2CE

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

15.0000 CENTIMETER

Package 1 width

30.0000 CENTIMETER

Package 1 length

40.0000 CENTIMETER

Package 1 weight

1.4800 KILOGRAM

Brand

Telemecanique

Description

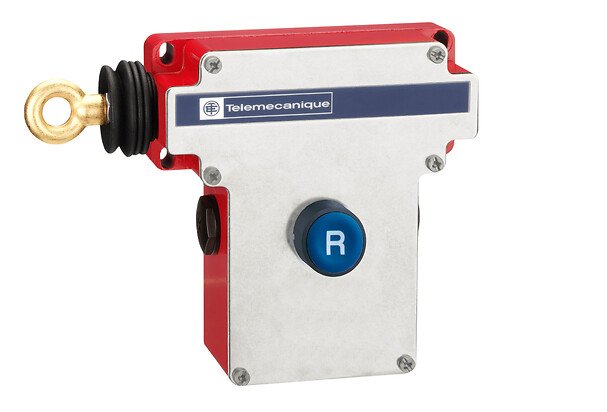

Telemecanique Emergency Stop Rope Pull Switch

Enhance workplace safety with the Telemecanique Emergency Stop Rope Pull Switch. This latching emergency stop device offers a reliable and efficient solution to ensure immediate shutdown in case of emergencies. The red RAL 3000 housing color provides high visibility, making it easy to locate in critical situations.

Ensures Class I conformity to EN/IEC 61140 and NF C 20-030 standards
Features slow-break contact operation for added safety
Can reach category 4 with appropriate monitoring system conforming to EN/ISO 13849-1

With a durable construction of Zamak body material and stainless steel cover, this emergency stop switch is built to withstand challenging industrial environments. The IP66 degree of protection ensures reliable performance even in harsh conditions, offering peace of mind to operators and supervisors.

Meets work equipment directive 2009/104/EC for safety compliance
Provides vibration resistance up to 10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
Weighing 1.48 kilograms, this switch is compact and easy to install in various settings
