Product information

Product or component type	Latching emergency stop rope pull switch
Device short name	XY2CE
Housing colour	Red RAL 3000
Overvoltage category	class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140
Local signalling	Without pilot light
Body Material	Zamak
Cover material	Stainless steel
Reset	By key-release push-button
Trigger cable anchor point	RH side
Connections - terminals	1 x 0.5…2 x 1.5 mm², Screw clamp terminal
Safety level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data	B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking	CE
Positive opening	With conforming to EN/IEC 60947-5-1
Resistance across terminals	25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1	(11-22)NC
Compatibility code	XY2CE
Standards	Work equipment directive 2009/104/EC
Product certifications	CCC, CSA, UL category NISD emergency stop devices
Protective treatment	TC
Vibration resistance	10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection	IP65 conforming to IEC 60529
Shock resistance	50 gn 11 ms conforming to EN/IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.0000 CENTIMETER
Package 1 width	15.0000 CENTIMETER
Package 1 length	20.0000 CENTIMETER
Package 1 weight	1.5360 KILOGRAM
Brand	Telemecanique

Description

Description

Description

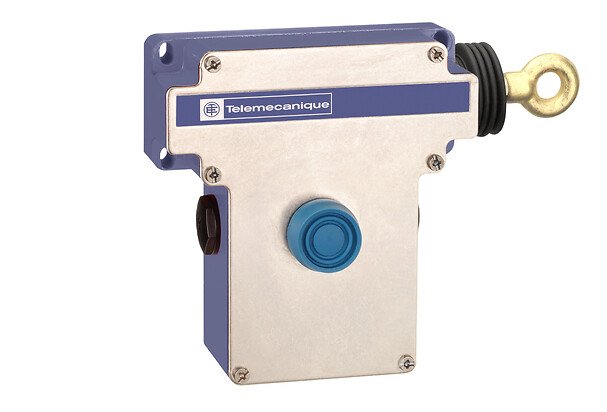

Telemecanique XY2CE1C250TK Latching Emergency Stop Rope Pull Switch

Enhance safety: The Telemecanique XY2CE emergency stop switch ensures reliable and immediate safety in industrial environments, conforming to stringent safety standards for peace of mind.
Durable construction: Crafted from high-quality materials like Zamak and stainless steel, this switch is built to withstand tough conditions and provide long-lasting performance.
Easy to use: With a key-release push-button and intuitive design, this emergency stop switch is simple to operate in times of need.
