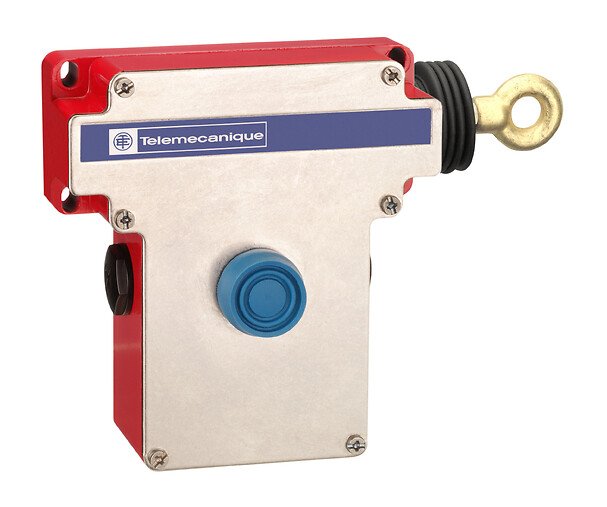

Telemecanique XY2CE1A270H7 Telemecanique Emergency stop rope pull switches XY2CLatching emergency stop rope pull switch - industify.com
Telemecanique

XY2CE1A270H7 Telemecanique

SKU: XY2CE1A270H7

Add to wishlist Add to compare
Categories: , Tag:
Product information
Range of product

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By booted push-button

Contacts type and composition

2 NC

Contact operation

Slow-break

Trigger cable anchor point

RH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

CE

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(11-22)NC

Compatibility code

XY2CE

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

TC

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.0000 CENTIMETER

Package 1 width

30.0000 CENTIMETER

Package 1 length

40.0000 CENTIMETER

Package 1 weight

1.4700 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Emergency Stop Rope Pull Switches – XY2C

The Telemecanique Emergency Stop Rope Pull Switches are designed to provide reliable safety in industrial environments. With a latching emergency stop mechanism and RH side trigger, they allow for quick and efficient shutdown in case of emergencies. The stainless steel construction ensures durability and reliability, while the IP66 degree of protection makes them suitable for various harsh conditions.

  • Enhanced safety with positive opening contacts
  • Compliance with industry standards for peace of mind
  • Easy installation with screw clamp terminals

Whether used in work equipment or machinery applications, the Telemecanique Emergency Stop Rope Pull Switches provide peace of mind and usability in critical situations. Trust Telemecanique for high-quality safety solutions in your industrial settings.
