Name: XY2CE1A270 Telemecanique | Industify
Brand: Telemecanique
SKU: XY2CE1A270
Price: 1.00 USD
Availability: InStock

Range of product

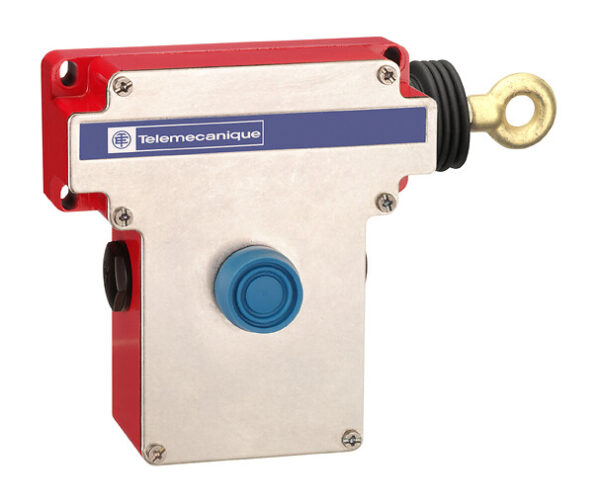

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

Device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

class I conforming to NF C 20-030, Class I conforming to EN/IEC 61140

Local signalling

Without pilot light

Body Material

Zamak

Cover material

Stainless steel

Reset

By booted push-button

Contacts type and composition

2 NC

Contact operation

Slow-break

Trigger cable anchor point

RH side

Connections - terminals

1 x 0.5…2 x 1.5 mm², Screw clamp terminal

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking

Positive opening

With conforming to EN/IEC 60947-5-1

Resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Terminals description ISO n°1

(11-22)NC

Standards

Work equipment directive 2009/104/EC

Product certifications

CCC, CSA, UL category NISD emergency stop devices

Protective treatment

Vibration resistance

10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.0000 CENTIMETER

Package 1 width

16.0000 CENTIMETER

Package 1 length

20.2000 CENTIMETER

Package 1 weight

1.5510 KILOGRAM

Unit type of package 2

S03

Package 2 height

30.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

9.8500 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Emergency Stop Rope Pull Switch

The Telemecanique Emergency Stop Rope Pull Switch offers a reliable safety solution for industrial environments, ensuring quick and effective response in emergency situations. With a latching emergency stop function and durable construction, this device provides peace of mind for operators and enhances overall workplace safety. The red RAL 3000 color and clear local signaling allow for easy identification and swift action when needed.

Designed for Class I conformity to EN/IEC 61140 standards
Constructed with high-quality Zamak and Stainless Steel materials for longevity
Equipped with a slow-break contact operation for precise control

With the ability to reach Safety Integrity Level 3 and category 4 compliance when correctly installed and monitored, this emergency stop switch ensures optimal safety reliability and performance. The IP66 degree of protection, along with resistance to vibrations and shocks, further enhances the durability and effectiveness of this essential safety device.
