HomeShopPhotoelectric SensorsDirect DetectionXUX0ARCTT16T Telemecanique

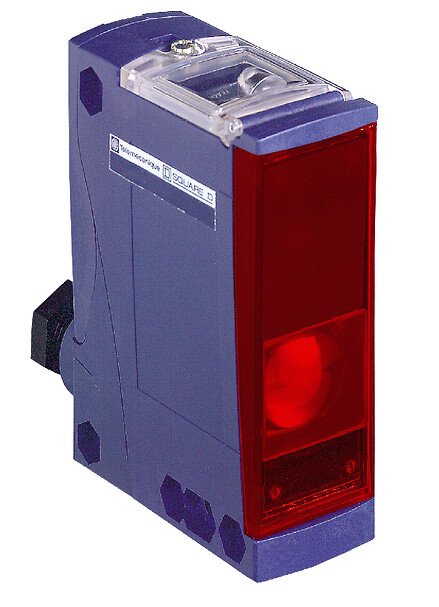

Telemecanique XUX0ARCTT16T General purpose multimodePhoto-electric sensor transmitter - industify.com
Telemecanique

XUX0ARCTT16T Telemecanique

SKU: XUX0ARCTT16T

Add to wishlist Add to compare
Categories: , , , Tag:
Product information
Series name

General purpose multimode

Electronic sensor type

Photo-electric sensor transmitter

Sensor name

XUX

Sensor design

Compact 92 x 71

Detection system

Thru beam

material

Plastic

Supply circuit type

AC/DC

Wiring technique

3-wire

Electrical connection

Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor

Product specific application

Not applicable

Emission

–

Enclosure material

PBT

Lens material

PMMA

Cable entry

1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm

Status LED

–

[Us] rated supply voltage

–

Switching capacity in mA

–

Time delay range

0.02…15 s monostable, on-delay or off-delay (programmable) delay

Maximum voltage drop

–

Current consumption

20 mA no-load

Delay first up

200.0000 MILLISECOND

Delay response

25.0000 MILLISECOND

Delay recovery

–

Setting-up

Without sensitivity adjustment

Vibration resistance

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60068-2-27

IP degree of protection

–

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0000 CENTIMETER

Package 1 width

9.5000 CENTIMETER

Package 1 length

13.0000 CENTIMETER

Package 1 weight

184.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

4.3670 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique XUX0ARCTT16T Photo-electric Sensor Transmitter

Enhance your industrial automation processes with the Telemecanique XUX0ARCTT16T Photo-electric Sensor Transmitter. This compact sensor features a reliable thru-beam detection system, ensuring precise and efficient operation. With a wide range of time delay settings and high vibration and shock resistance, this sensor offers durable performance in demanding environments. The IP degree of protection further guarantees the longevity of the unit, making it a valuable addition to your machinery.

  • Ensure accurate detection with the General purpose multimode feature
  • Experience seamless integration with the 3-wire screw-clamp terminals
  • Benefit from the convenient programmable delay options, tailored to your specific needs

Upgrade your automation system with the Telemecanique XUX0ARCTT16T Photo-electric Sensor Transmitter and enjoy improved efficiency and reliability in your processes. Trust in Telemecanique for cutting-edge industrial solutions that elevate your operations.
