Name: XUSZAMT4PT Telemecanique | Industify
Brand: Telemecanique
SKU: XUSZAMT4PT
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Safety light curtains XUSL

Product or component type

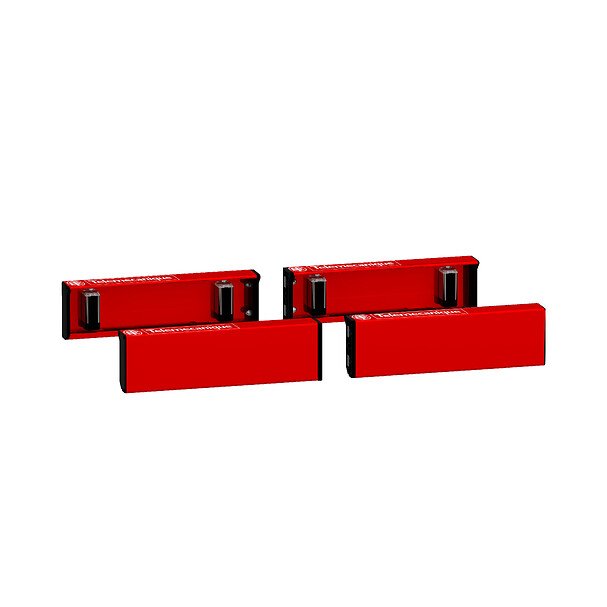

Multi-beam prebuilt muting arms

Device short name

XUSZAM

Output type

4 discrete solid-state PNP (NO)

Product compatibility

XUSL4M

Detection system

Through beam

Product specific application

Conveyor system entry/exit direction, conveyor system normal speed

Specific application of photoelectric detector

Detection of opaque parts

Sensing range

> 75 cm pallet length, > 75 cm space between package

Response Time

100 ms

Kit composition

quick start guide, transmitter + receiver

Emission

IR LED 940 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

Via connector

Current consumption

42 mA

Output voltage

24 V

Output circuit type

Voltage drop

0.5 V

Switching capacity in mA

100 mA

Local signalling

4 yellow LED receiver

Housing colour

Red RAL 3000

Directives

98/37/EEC – machinery

Product certifications

Safety reliability data

PFHd = 2.73E-7 1/h

IP degree of protection

IP65

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

14.5000 CENTIMETER

Package 1 width

20.0000 CENTIMETER

Package 1 length

91.0000 CENTIMETER

Package 1 weight

5.1400 KILOGRAM

Unit type of package 2

P12

Package 2 height

45.0000 CENTIMETER

Package 2 width

80.0000 CENTIMETER

Package 2 length

120.0000 CENTIMETER

Package 2 weight

12.1400 KILOGRAM

WEEE

Brand

Telemecanique

Description

Telemecanique Safety Light Curtains XUSL

Enhance workplace safety and productivity with the Telemecanique Safety Light Curtains XUSL. This multi-beam prebuilt system is designed for conveyor systems, offering reliable detection of opaque parts and ensuring smooth operation. The quick response time of 100 ms and wide sensing range provide efficient protection for workers and equipment, detecting objects over 75 cm in length with precision.

Improves workplace safety
Boosts productivity in conveyor systems
Quick response time for optimal protection

With a sturdy housing in a vibrant red color, these safety light curtains comply with machinery directives for peace of mind and operational reliability. The IP65 degree of protection ensures durability in challenging industrial environments, while the compact design and easy installation make it a convenient solution for your safety needs.
