HomeShopSafety EquipmentLight CurtainsXUSL4MB30H121N Telemecanique
Telemecanique XUSL4MB30H121N Telemecanique Safety light curtains XUSLSafety light curtain type 4 - industify.com
Telemecanique

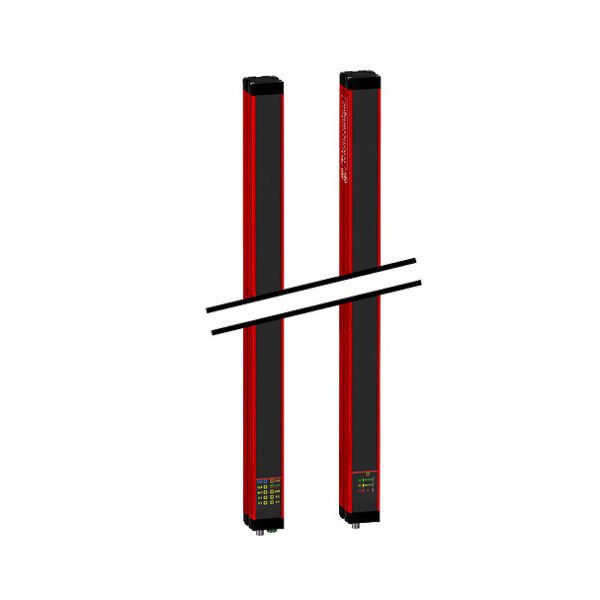

XUSL4MB30H121N Telemecanique

SKU: XUSL4MB30H121N

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety light curtains XUSL
Product or component type

Safety light curtain type 4
Device short name

XUSL4M
Output type

2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application

For hand protection
Type of start

Manual
Control type

Selected by wiring
Detection system

Transmitter-receiver system
Response Time

17.6 ms
Kit composition

1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s)
Emission

IR LED 950 nm
[Us] rated supply voltage

24 V DC +/- 20 %
Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1
Current consumption

35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver
Output voltage

24 V
Output circuit type

DC
Voltage drop

0.5 V
Local signalling

1 multi-colour LED transmitter, 10 dual colour LEDs receiver
Electrical connection

1 male connector M12 12 pins receiver, 1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 3 female connectors M12 5 pins receiver
Function available

LED display of operating modes and faults, muting, Test
material

Aluminium: casing, polycarbonate: front panel, polypropylene: end caps
Housing colour

Red RAL 3000
Fixing mode

By fixing brackets
Offer type

Standard distance
Directives

98/37/EEC – machinery
Product certifications

CULus
Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1
Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2
Safety reliability data

PFHd = 2.50E-8 1/h conforming to IEC 61508
IP degree of protection

IP65, IP67
Shock resistance

10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

14.5000 CENTIMETER
Package 1 width

20.0000 CENTIMETER
Package 1 length

139.0000 CENTIMETER
Package 1 weight

7.9900 KILOGRAM
Unit type of package 2

PAL
Package 2 height

14.5000 CENTIMETER
Package 2 width

20.0000 CENTIMETER
Package 2 length

139.0000 CENTIMETER
Package 2 weight

14.9900 KILOGRAM
WEEE

WEEE
Brand

Telemecanique
Description

Description

Safety Enhanced with Telemecanique Safety Light Curtains XUSL

Designed to provide optimal hand protection in industrial settings, the Telemecanique Safety Light Curtains XUSL4M2 offer a reliable solution for ensuring workplace safety. With fast response time of 17.6ms and a durable construction, this device is ideal for critical applications. The adjustable mounting brackets make installation hassle-free and efficient, while the LED display allows for easy monitoring of operating modes and faults.

  • Enhanced safety measures with Type 4 Safety Light Curtain
  • Fast response time of 17.6ms for quick detection
  • Adjustable mounting brackets for easy installation
  • LED display for clear monitoring of operating modes

Experience peace of mind knowing that your workspace is equipped with top-tier safety technology, thanks to the Telemecanique Safety Light Curtains XUSL. Ensure your employees’ well-being with this reliable and efficient safety device.
