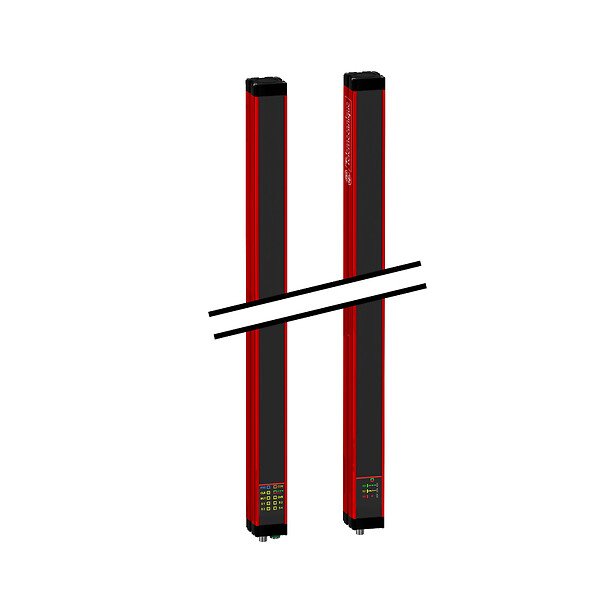

HomeShopSafety EquipmentLight CurtainsXUSL4MB2BB051N Telemecanique
Telemecanique XUSL4MB2BB051N Telemecanique Safety light curtains XUSLSafety light curtain type 4 - industify.com
Telemecanique

XUSL4MB2BB051N Telemecanique

SKU: XUSL4MB2BB051N

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety light curtains XUSL
Product or component type

Safety light curtain type 4
Device short name

XUSL4M
Output type

2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application

For body protection
Type of start

Manual
Control type

Selected by wiring
Detection system

Transmitter-receiver system
Response Time

5.5 ms
Kit composition

1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s)
Emission

IR LED 950 nm
[Us] rated supply voltage

24 V DC +/- 20 %
Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1
Current consumption

35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver
Output voltage

24 V
Output circuit type

DC
Voltage drop

0.5 V
Local signalling

1 multi-colour LED transmitter, 10 dual colour LEDs receiver
Electrical connection

1 male connector M12 12 pins receiver, 1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 3 female connectors M12 5 pins receiver
Function available

LED display of operating modes and faults, muting, Test
material

Aluminium: casing, polycarbonate: front panel, polypropylene: end caps
Housing colour

Red RAL 3000
Fixing mode

By fixing brackets
Offer type

Standard distance
Directives

98/37/EEC – machinery
Product certifications

CULus
Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1
Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2
Safety reliability data

PFHd = 8.97E-9 1/h conforming to IEC 61508
IP degree of protection

IP65, IP67
Shock resistance

10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

14.5000 CENTIMETER
Package 1 width

20.0000 CENTIMETER
Package 1 length

79.0000 CENTIMETER
Package 1 weight

4.6200 KILOGRAM
Unit type of package 2

P06
Package 2 height

45.0000 CENTIMETER
Package 2 width

60.0000 CENTIMETER
Package 2 length

80.0000 CENTIMETER
Package 2 weight

25.9360 KILOGRAM
WEEE

WEEE
Brand

Telemecanique
Description

Description

Safety and Efficiency Combined: Telemecanique Safety Light Curtains XUSL

Enhance workplace safety and productivity with the Telemecanique Safety Light Curtains XUSL4M2. This advanced device provides reliable body protection through its Safety Light Curtain Type 4 technology, ensuring a secure work environment for operators. The quick response time of 5.5 ms coupled with adjustable mounting brackets allows for efficient installation and customization to suit various industrial settings.

  • Robust Design: The durable aluminium casing and polycarbonate front panel ensure long-lasting performance, while the red housing color enhances visibility in the workspace.
  • Easy Integration: With multiple connectors and clear LED displays for operating modes and faults, the XUSL Light Curtain offers seamless integration into existing machinery systems.
  • Certified Safety: Compliant with international safety standards such as SIL 3 and category 4, this device provides peace of mind and reliable protection for both equipment and personnel.
