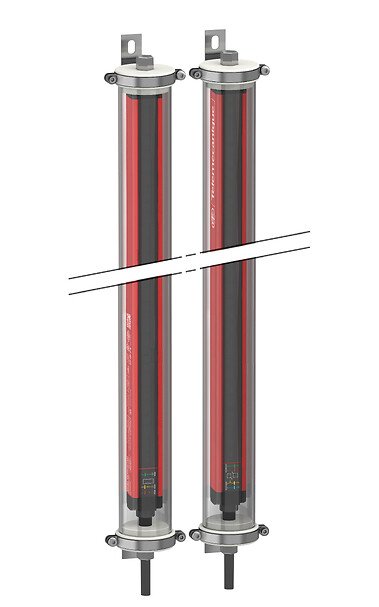

Telemecanique XUSL4E3BB081LWC Safety light curtain type 4XUSL4E - industify.com
Telemecanique

XUSL4E3BB081LWC Telemecanique

SKU: XUSL4E3BB081LWC

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Product or component type

Safety light curtain type 4

Device short name

XUSL4E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For body protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

3 ms

Kit composition

1 PVC cable(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s), silicone o-ring(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

DC

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Type of cable

Unshielded cable AWG 22 10-10 m

Function available

anti-condensation system, LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

CE

material

PMMA (polymethyl methacrylate): tube, PVC (polyvinyl chloride): cable, stainless steel AISI 316L: sealing plug

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Long distance

Provided equipment

Without heating system

Directives

98/37/EEC – machinery

Product certifications

Ecolab

Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2

Safety reliability data

PFHd = 7.55E-9 1/h conforming to IEC 61508

IP degree of protection

IP69K

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.5000 CENTIMETER

Package 1 width

19.5000 CENTIMETER

Package 1 length

90.0000 CENTIMETER

Package 1 weight

5.7490 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Light Curtain XUSL4E3BB081LWC

Providing enhanced safety and protection, the Telemecanique Safety Light Curtain Type 4XUSL4E2 ensures reliable output with OSSD solid-state PNP safety outputs. With a quick response time of 3 ms, this device offers efficient body protection while allowing for manual control and adjustment as needed. The kit includes all necessary components for easy installation, including mounting brackets, transmitters, receivers, and user guides, ensuring a seamless setup process.

  • Enhanced Safety: The IP69K degree of protection, shock resistance, and vibration resistance make this light curtain highly reliable in demanding industrial environments.
  • Easy Installation: The kit composition includes all essential components and accessories, simplifying the setup process.
  • Conforming Standards: Certified to meet safety levels such as SIL 3 and category 4, this light curtain ensures compliance with industry standards for safety systems.

Designed for long-distance applications without the need for a heating system, the Telemecanique Safety Light Curtain offers a high level of safety and reliability. With a focus on user experience and adherence to rigorous safety standards, this product is an essential addition to industrial settings where protection and efficiency are paramount.
