Name: XUSL4E3BB081L Telemecanique | Industify
Brand: Telemecanique
SKU: XUSL4E3BB081L
Price: 1.00 USD
Availability: InStock

Range of product

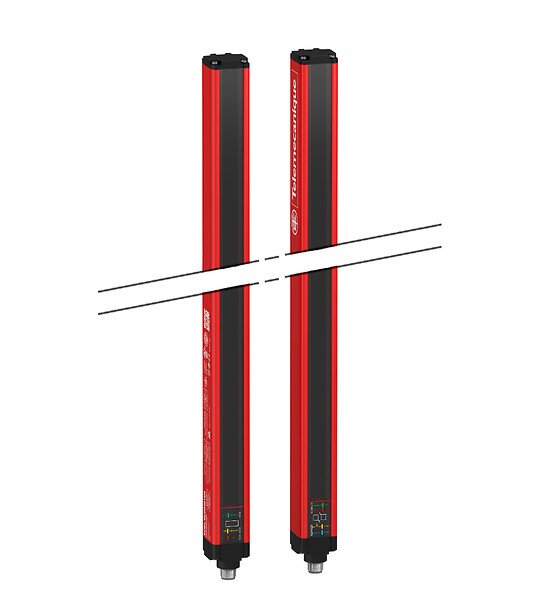

Telemecanique Safety light curtains XUSL

Product or component type

Safety light curtain type 4

Device short name

XUSL4E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For body protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

2.5 ms

Kit composition

1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Function available

LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

material

Aluminium: casing, polycarbonate: front panel, polypropylene: end caps

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Long distance

Directives

98/37/EEC – machinery

Product certifications

CULus

Safety level

category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to IEC 61496-2

Safety reliability data

PFHd = 7.55E-9 1/h conforming to IEC 61508

IP degree of protection

IP65, IP67

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

14.5000 CENTIMETER

Package 1 width

19.5000 CENTIMETER

Package 1 length

101.5000 CENTIMETER

Package 1 weight

3.3830 KILOGRAM

Unit type of package 2

P12

Package 2 height

75.0000 CENTIMETER

Package 2 width

80.0000 CENTIMETER

Package 2 length

120.0000 CENTIMETER

Package 2 weight

84.0000 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Safety Light Curtains XUSL – Enhancing Workplace Safety and Efficiency

Experience peace of mind with the **Telemecanique Safety Light Curtains XUSL**, designed to provide reliable safety protection in industrial settings. These light curtains offer **quick response time** of 2.5 ms, ensuring swift detection and reaction to potential hazards, ultimately safeguarding personnel and equipment. The **solid-state PNP output type** with arc suppression enhances safety measures, while the **transmitter-receiver system** allows for seamless installation and operation.

Achieve **user-friendly** setup with included mounting brackets and user guide
Benefit from the **ultra-safe IR LED with 950 nm wavelength**, ensuring accurate detection
Ensure **convenient operation** with multi-color LED indicators and male connectors for easy connectivity

With **CE certification** and compliance with various safety standards, such as Type 4 and SIL 3, these light curtains offer **peace of mind**, knowing that your workspace meets stringent safety requirements. The **durable construction** with aluminum casing and polycarbonate front panel ensures longevity and reliability, making the **Telemecanique Safety Light Curtains XUSL** the ideal choice for enhancing workplace safety and efficiency.
