Name: XUSL4E30H181LWC Telemecanique | Industify
Brand: Telemecanique
SKU: XUSL4E30H181LWC
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Safety light curtains XUSL

Product or component type

Safety light curtain type 4

Device short name

XUSL4E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For hand protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

22 ms

Kit composition

1 PVC cable(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s), silicone o-ring(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Type of cable

Unshielded cable AWG 22 10-10 m

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Function available

anti-condensation system, LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

material

PMMA (polymethyl methacrylate): tube, PVC (polyvinyl chloride): cable, stainless steel AISI 316L: sealing plug

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Long distance

Provided equipment

Without heating system

Directives

98/37/EEC – machinery

Product certifications

Ecolab

Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2

IP degree of protection

IP69K

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

14.0000 CENTIMETER

Package 1 width

20.0000 CENTIMETER

Package 1 length

20.0000 CENTIMETER

Package 1 weight

10.4000 KILOGRAM

Brand

Telemecanique

Description

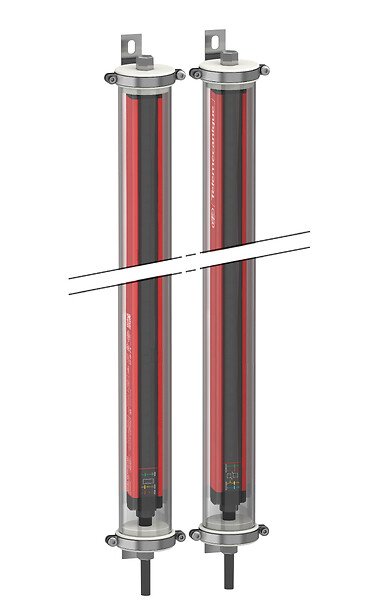

Telemecanique Safety Light Curtains XUSL

Enhance safety and efficiency in your industrial workspace with the Telemecanique Safety Light Curtains XUSL. This Type 4 safety light curtain features solid-state PNP outputs for reliable hand protection, offering peace of mind during operation. The quick response time of 22 ms ensures prompt detection and reaction to potential hazards, contributing to a safer work environment.

Ensure compliance with safety standards with SIL 3 and category 4 certifications
Benefit from a user-friendly design with LED displays for easy monitoring of operating modes and faults
Experience durable performance with IP69K protection, resistant to shock and vibration

This Telemecanique Safety Light Curtain kit includes all necessary components for straightforward installation, making it a convenient solution for enhancing workplace safety without compromising productivity. Invest in the XUSL series to prioritize safety and streamline operations in your facility.
