HomeShopSafety EquipmentLight CurtainsXUSL4E30H091NS2 Telemecanique
🔍

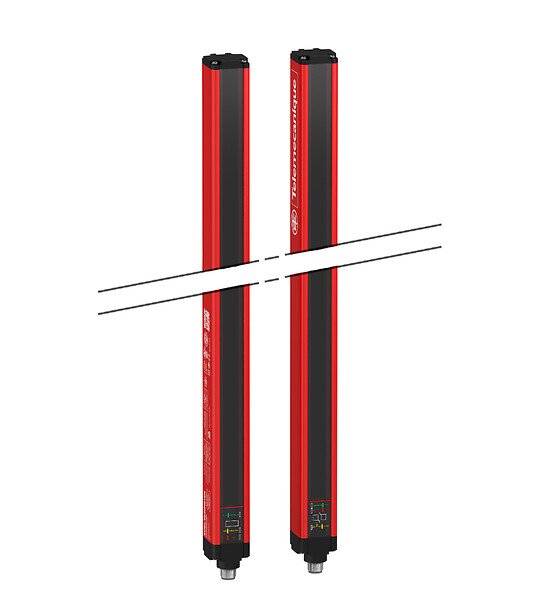

Telemecanique XUSL4E30H091NS2 Safety light curtain type 4XUSL4E - industify.com
Telemecanique

XUSL4E30H091NS2 Telemecanique

SKU: XUSL4E30H091NS2

Add to wishlist
Add to wishlist Add to compare
Categories: , , Tag:
Product information
Product or component type

Safety light curtain type 4
Device short name

XUSL4E
Output type

2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application

For hand protection
Type of start

Manual
Control type

Selected by wiring
Detection system

Transmitter-receiver system
Kit composition

1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s)
Emission

IR LED 950 nm
[Us] rated supply voltage

24 V DC +/- 20 %
Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1
Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver
Output voltage

24 V
Output circuit type

DC
Voltage drop

0.5 V
Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver
Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver
Function available

LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test
Marking

CE
material

Aluminium: casing, polycarbonate: front panel, polypropylene: end caps
Housing colour

Red RAL 3000
Fixing mode

By fixing brackets
Offer type

Standard distance
Topology

Daisy chain slave2
Directives

98/37/EEC – machinery
Product certifications

CULus
Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1
Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2
Safety reliability data

PFHd = 1.30E-8 1/h conforming to IEC 61508
IP degree of protection

IP65, IP67
Shock resistance

10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

13.5000 CENTIMETER
Package 1 width

19.5000 CENTIMETER
Package 1 length

100.0000 CENTIMETER
Package 1 weight

3.3000 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Safety Light Curtain Type 4XUSL4E2

Enhance Safety: The Telemecanique Safety Light Curtain Type 4XUSL4E2 provides reliable hand protection through its Safety Outputs OSSD and solid-state PNP technology, ensuring a secure work environment for operators.

Easy Installation: With adjustable mounting brackets and a transmitter-receiver system, this light curtain offers flexibility and convenience during setup, making it user-friendly and efficient.

Robust Design: Constructed with durable materials such as aluminium casing and polycarbonate front panel, this light curtain is built to withstand various industrial environments, ensuring long-lasting performance and safety compliance.
