Name: XUSL4E30H061LWC Telemecanique | Industify
Brand: Telemecanique
SKU: XUSL4E30H061LWC
Price: 1.00 USD
Availability: InStock

Range of product

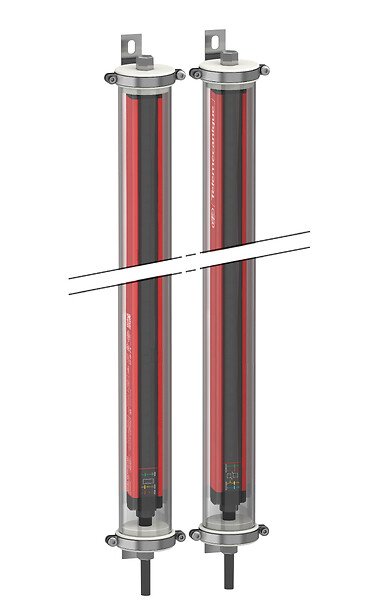

Telemecanique Safety light curtains XUSL

Product or component type

Safety light curtain type 4

Device short name

XUSL4E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For hand protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

9 ms

Kit composition

1 PVC cable(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s), silicone o-ring(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Type of cable

Unshielded cable AWG 22 10-10 m

Function available

anti-condensation system, LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

material

PMMA (polymethyl methacrylate): tube, PVC (polyvinyl chloride): cable, stainless steel AISI 316L: sealing plug

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Long distance

Provided equipment

Without heating system

Directives

98/37/EEC – machinery

Product certifications

Ecolab

Safety level

category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2

Safety reliability data

PFHd = 1.06E-8 1/h conforming to IEC 61508

IP degree of protection

IP69K

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

13.5000 CENTIMETER

Package 1 width

19.5000 CENTIMETER

Package 1 length

70.0000 CENTIMETER

Package 1 weight

5.5660 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Safety Light Curtains XUSL

Enhance workplace safety with the Telemecanique Safety Light Curtains XUSL4E30H061LWC. This advanced device offers reliable Type 4 safety outputs, ensuring optimal protection for operators working with machinery. The quick 9 ms response time and adjustable mounting brackets provide flexibility and efficiency in installation, while the easy-to-use transmitter-receiver system streamlines user operation.

The Telemecanique Safety Light Curtains XUSL4E30H061LWC come complete with essential equipment including a user guide, silicone o-rings, and PVC cables, simplifying setup and maintenance tasks. The unit’s robust construction, featuring materials like polycarbonate and stainless steel, guarantees durability and longevity in diverse industrial environments. With compliance to industry standards like Category 4 and SIL 3, users can trust in the product’s high safety reliability and performance.

Ensure efficient installation and operation with quick 9 ms response time
Utilize essential equipment included in the kit for easy setup and maintenance
Experience long-lasting durability and safety compliance in industrial applications
