HomeShopSafety EquipmentLight CurtainsXUSL4E14F076N Telemecanique

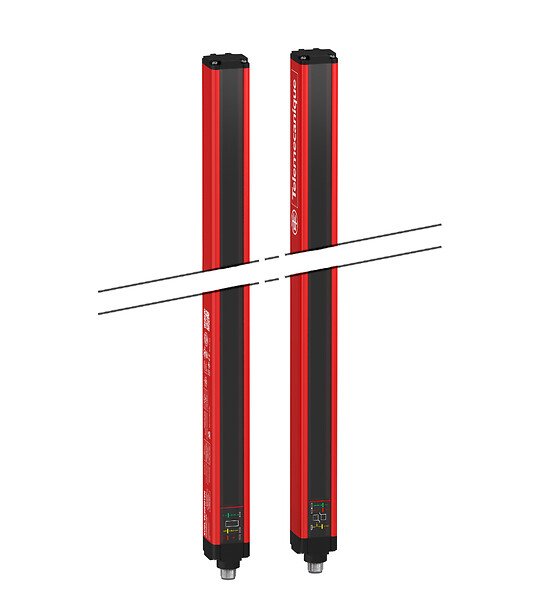

Telemecanique XUSL4E14F076N Telemecanique Safety light curtains XUSLSafety light curtain type 4 - industify.com
Telemecanique

XUSL4E14F076N Telemecanique

SKU: XUSL4E14F076N

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety light curtains XUSL

Product or component type

Safety light curtain type 4

Device short name

XUSL4E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For finger protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

11 ms

Kit composition

1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

DC

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Function available

LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

CE

material

Aluminium: casing, polycarbonate: front panel, polypropylene: end caps

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Standard distance

Directives

98/37/EEC – machinery

Product certifications

CULus

Safety level

category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to IEC 61496-2

Safety reliability data

PFHd = 2.00E-8 1/h conforming to IEC 61508

IP degree of protection

IP65, IP67

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

14.0000 CENTIMETER

Package 1 width

19.5000 CENTIMETER

Package 1 length

85.0000 CENTIMETER

Package 1 weight

2.8220 KILOGRAM

Unit type of package 2

PAL

Package 2 height

75.0000 CENTIMETER

Package 2 width

60.0000 CENTIMETER

Package 2 length

80.0000 CENTIMETER

Package 2 weight

42.3640 KILOGRAM

Brand

Telemecanique

Description

Description

Safety Light Curtains XUSL by Telemecanique: Enhancing Industrial Safety

The Telemecanique Safety Light Curtains XUSL offer a robust and reliable solution to enhance workplace safety in industrial settings. With Type 4 safety outputs and solid-state PNP technology, these curtains provide efficient finger protection, ensuring the well-being of operators. The quick response time of 11 ms and adjustable mounting brackets make installation and operation effortless, boosting overall productivity.

Powered by IR LED technology and compliant with international safety standards, the XUSL Light Curtains guarantee a secure working environment. The multi-color LEDs, LED display of operating modes and faults, and muting through external safety modules further streamline operations and maintenance tasks. The durable aluminum casing and high IP degree of protection ensure long-term performance and reliability even in challenging conditions.

  • Enhance Safety: Type 4 safety outputs and fast response time for operator protection.
  • Easy Installation: Adjustable mounting brackets and user-friendly design for quick setup.
  • Reliable Performance: Compliance with international safety standards and durable construction for long-term use.
  • Streamlined Operation: LED display, muting capabilities, and multi-color LEDs for simplified monitoring.
