HomeShopSafety EquipmentLight CurtainsXUSL2E30H106NWH Telemecanique

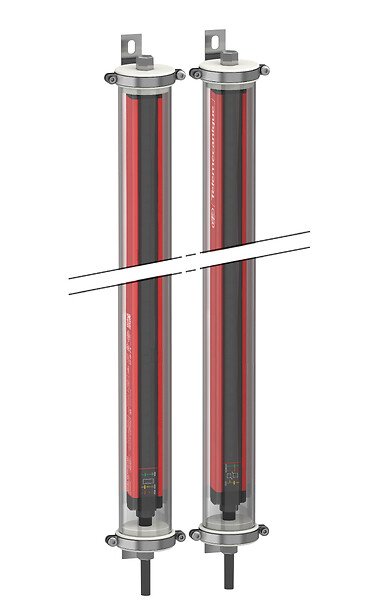

Telemecanique XUSL2E30H106NWH Telemecanique Safety light curtains XUSLSafety light curtain type 2 - industify.com
Telemecanique

XUSL2E30H106NWH Telemecanique

SKU: XUSL2E30H106NWH

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety light curtains XUSL

Product or component type

Safety light curtain type 2

Device short name

XUSL2E

Output type

2 safety outputs OSSD solid-state PNP (arc suppression)

Product specific application

For hand protection

Type of start

Manual

Control type

Selected by wiring

Detection system

Transmitter-receiver system

Response Time

14.5 ms

Kit composition

1 PVC cable(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s), silicone o-ring(s)

Emission

IR LED 950 nm

[Us] rated supply voltage

24 V DC +/- 20 %

Supply

power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1

Current consumption

42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver

Output voltage

24 V

Output circuit type

DC

Voltage drop

0.5 V

Local signalling

1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Electrical connection

1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

Type of cable

Unshielded cable AWG 22 10-10 m

Function available

anti-condensation system, LED display of operating modes and faults, muting through external safety module XPSLCMUT1160, Test

Marking

CE

material

PMMA (polymethyl methacrylate): tube, PVC (polyvinyl chloride): cable, stainless steel AISI 316L: sealing plug

Housing colour

Red RAL 3000

Fixing mode

By fixing brackets

Offer type

Standard distance

Provided equipment

With heating system

Directives

98/37/EEC – machinery

Product certifications

Ecolab

Safety level

category 2 conforming to EN/ISO 13849-1, PL = c conforming to EN/ISO 13849-1, SIL 1 conforming to IEC 61508, SILCL 1 conforming to IEC 62061, Type 2 conforming to IEC 61496-1

Environmental characteristic

Resistance to light disturbance conforming to EN/IEC 61496-2

Safety reliability data

PFHd = 5.83E-8 1/h conforming to IEC 61508

IP degree of protection

IP69K

Shock resistance

10 gn for 16 ms conforming to IEC 61496-1

Vibration resistance

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.5000 CENTIMETER

Package 1 width

19.5000 CENTIMETER

Package 1 length

119.0000 CENTIMETER

Package 1 weight

7.4020 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Light Curtains XUSL

Enhance Safety: The Telemecanique Safety Light Curtains XUSL provide reliable protection, ensuring the safety of operators and preventing accidents in industrial settings. With Type 2 safety outputs, solid-state technology, and quick response time of 14.5 ms, these curtains offer efficient hand protection.

Easy Installation: The kit includes all necessary components for straightforward setup, including adjustable mounting brackets, transmitters, receivers, and a user guide. With clear LED displays for operating modes and faults, users can easily monitor the system’s status. The anti-condensation system and durable construction offer long-lasting performance.

Robust Design: Built with high-quality materials such as PMMA, stainless steel, and PVC, these light curtains are IP69K rated for protection against harsh environments. The resistance to light disturbance and compliance with safety standards ensure reliable operation, making them suitable for various industrial applications.

  • Ensure operator safety with Type 2 safety outputs
  • Easy installation with included mounting brackets and user guide
  • Durable construction with IP69K rating for harsh environments
  • Clear LED displays for monitoring system status
  • Resistance to light disturbance for reliable operation
