Name: XS918R1PAM12 Telemecanique | Industify
Brand: Telemecanique
SKU: XS918R1PAM12
Price: 1.00 USD
Availability: InStock

Series name

Application

Sensor Type

Inductive proximity sensor

Sensor name

XS9

Device application

Harsh environment application

Sensor design

Cylindrical M18

Size

64 mm

Body type

Single piece body

Type of output signal

Discrete

Wiring technique

3-wire

Discrete output function

1 NO

Detector flush mounting acceptance

Flush mountable

Discrete output type

PNP

material

Stainless steel 303

Electrical connection

4 pins, Male connector M12

[Us] rated supply voltage

12…24 V DC with reverse polarity protection

Output circuit type

Switching capacity in mA

= 200 mA with overload and short-circuit protection

IP degree of protection

IP68 conforming to IEC 60529, IP69K conforming to DIN 40050

Enclosure material

Stainless steel 303

Detection face

Frontal

Thread type

M18 x 1

Front material

Stainless steel 303

Sensing range

8…15 mm

Differential travel

1…15 % of Sr

Repeat accuracy

= 5 % of Sr

Residual current

0.1 mA open state

Status LED

output state: 1 LED (yellow)

Switching Frequency

= 300 Hz

Voltage drop

2 V (closed)

Current consumption

= 10 mA no-load

Delay first up

40.0000 MILLISECOND

Delay response

0.0001 MILLISECOND

Marking

Delay recovery

0.0150 MILLISECOND

Product certifications

CULus

Vibration resistance

25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.0000 CENTIMETER

Package 1 width

8.0000 CENTIMETER

Package 1 length

13.0000 CENTIMETER

Package 1 weight

62.0000 GRAM

Unit type of package 2

S01

Package 2 height

15.0000 CENTIMETER

Package 2 width

15.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

1.7560 KILOGRAM

Brand

Telemecanique

Description

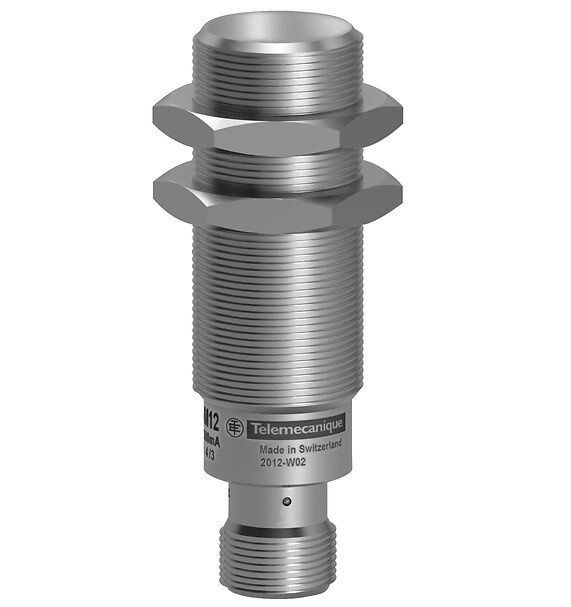

Telemecanique XS918R1PAM12 Inductive Proximity Sensor

The Telemecanique XS918R1PAM12 Inductive Proximity Sensor is designed to provide reliable and accurate detection in harsh environments, ensuring consistent performance in challenging applications. With a rugged stainless steel construction and IP69K protection rating, this sensor offers durability and resistance to various environmental factors, making it ideal for industrial settings. The flush mountable design allows for seamless integration into machinery, enhancing the overall efficiency and safety of the operations.

Robust Construction: The stainless steel body and front material ensure longevity and resistance to harsh conditions, providing a reliable solution for industrial applications.
Accurate Detection: With a sensing range of 8-15mm and high repeat accuracy, this sensor delivers precise performance for consistent detection of objects.
Easy Integration: The M12 male connector and simple wiring technique facilitate quick installation, enabling seamless integration into existing systems without hassle.
