HomeShopProximity SensorsInductive SensorsXS212B4NBL2 Telemecanique
Telemecanique XS212B4NBL2 General purposeInductive proximity sensor - industify.com
Telemecanique

XS212B4NBL2 Telemecanique

SKU: XS212B4NBL2

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Series name

General purpose

Sensor Type

Inductive proximity sensor

Sensor name

XS2

Device application

Mobile equipment

Sensor design

Cylindrical M12

Size

37 mm

Body type

Fixed

Type of output signal

Discrete

Wiring technique

3-wire

Discrete output function

1 NC

Detector flush mounting acceptance

Non flush mountable

Discrete output type

NPN

material

Metal

Electrical connection

Cable

[Us] rated supply voltage

12…24 V DC with reverse polarity protection

Output circuit type

DC

Switching capacity in mA

= 200 mA with overload and short-circuit protection

IP degree of protection

IP65 conforming to IEC 60529, IP67 conforming to DIN 40050, IP69K

Enclosure material

Nickel plated brass

Detection face

Frontal

Thread type

M12 x 1

Front material

PPS

Sensing range

> 4…8 mm

Differential travel

1…15 % of Sr

Cable composition

3 x 0.34 mm²

Status LED

output state: 1 LED (yellow)

Wire insulation material

PVC

Switching Frequency

= 2000 Hz

Voltage drop

2 V (closed)

Current consumption

= 10 mA no-load

Delay first up

15.0000 MILLISECOND

Delay response

0.2000 MILLISECOND

Marking

CE

Delay recovery

0.2000 MILLISECOND

Product certifications

E2

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.0000 CENTIMETER

Package 1 width

4.1000 CENTIMETER

Package 1 length

9.4000 CENTIMETER

Package 1 weight

86.0000 GRAM

Brand

Telemecanique

Description

Description

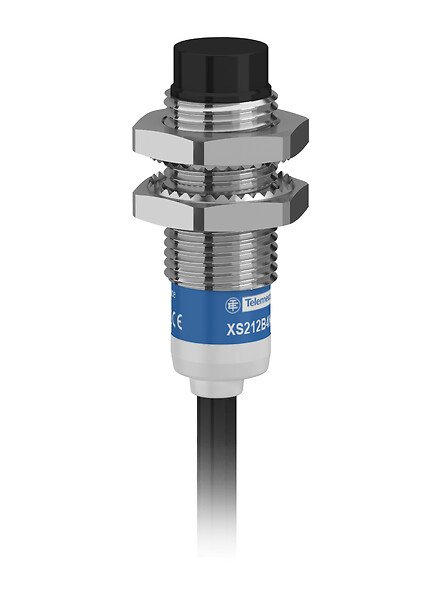

Telemecanique XS212B4NBL2 Inductive Proximity Sensor

The Telemecanique XS212B4NBL2 Inductive Proximity Sensor offers reliable detection capabilities in a compact and durable design. With a robust nickel-plated brass body and IP65/IP67/IP69K protection rating, this sensor is ideal for mobile equipment and general-purpose applications. The cylindrical M12 sensor provides a sensing range of 4-8mm, ensuring accurate proximity detection for various devices.

  • Ensures precise detection with a differential travel of 1-15% of Sr.
  • Features a frontal PPS face and LED status indicator for easy monitoring.
  • Designed for easy installation with a 3-wire wiring technique and 12-24V DC supply voltage.

Enhance your system’s efficiency and performance with the Telemecanique XS212B4NBL2 Inductive Proximity Sensor. Its durable construction, precise detection capabilities, and user-friendly design make it a valuable addition to any application requiring reliable proximity sensing.
