Telemecanique XS112B3PAL2 General purposeInductive proximity sensor - industify.com
Telemecanique

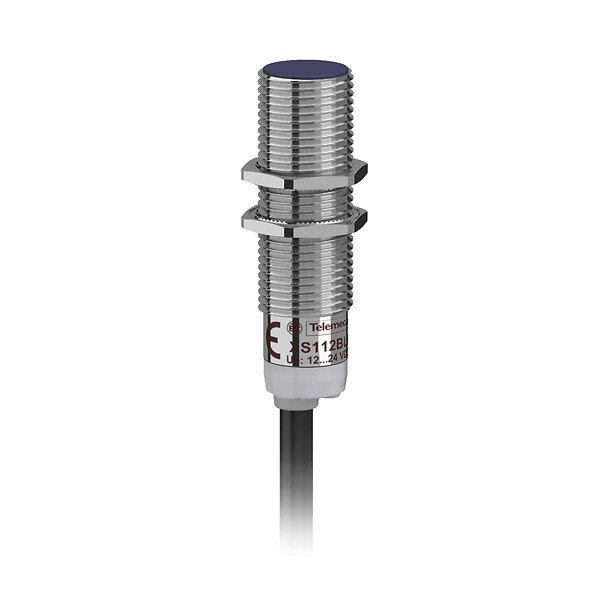

XS112B3PAL2 Telemecanique

SKU: XS112B3PAL2

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Series name

General purpose

Sensor Type

Inductive proximity sensor

Sensor name

XS1

Device application

Mobile equipment

Sensor design

Cylindrical M12

Size

37 mm

Body type

Fixed

Type of output signal

Discrete

Wiring technique

3-wire

Discrete output function

1 NO

Detector flush mounting acceptance

Flush mountable

Discrete output type

PNP

material

Metal

Electrical connection

Cable

[Us] rated supply voltage

12…24 V DC with reverse polarity protection

Output circuit type

DC

Switching capacity in mA

= 200 mA with overload and short-circuit protection

IP degree of protection

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529

Enclosure material

Nickel plated brass

Detection face

Frontal

Thread type

M12 x 1

Front material

PPS

Differential travel

1…15 % of Sr

Cable composition

3 x 0.34 mm²

Status LED

output state: 1 LED (yellow)

Wire insulation material

PVC

Switching Frequency

= 2500 Hz

Voltage drop

2 V (closed)

Current consumption

= 10 mA no-load

Delay first up

10.0000 MILLISECOND

Delay response

0.2000 MILLISECOND

Marking

CE

Delay recovery

0.2000 MILLISECOND

Product certifications

E2

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.2000 CENTIMETER

Package 1 width

4.1000 CENTIMETER

Package 1 length

9.5000 CENTIMETER

Package 1 weight

74.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

2.1330 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique XS112B3PAL2 Inductive Proximity Sensor

Enhance your mobile equipment with the XS1 series inductive proximity sensor from Telemecanique. With its sturdy cylindrical M12 design and flush mountable feature, this sensor offers reliable detection capabilities for various applications. The PNP output signal ensures seamless integration with your equipment, providing precise feedback for efficient operation.

  • IP65 and IP67 protection ratings for durability
  • High switching capacity of up to 200 mA for reliable performance
  • LED status indicator for quick visual feedback

Designed with a compact size and robust construction, this sensor offers nickel-plated brass material for long-lasting use. The 12-24 V DC rated supply voltage with reverse polarity protection ensures safe and stable operation in diverse environments. Improve your equipment’s efficiency and accuracy with the Telemecanique inductive proximity sensor.
