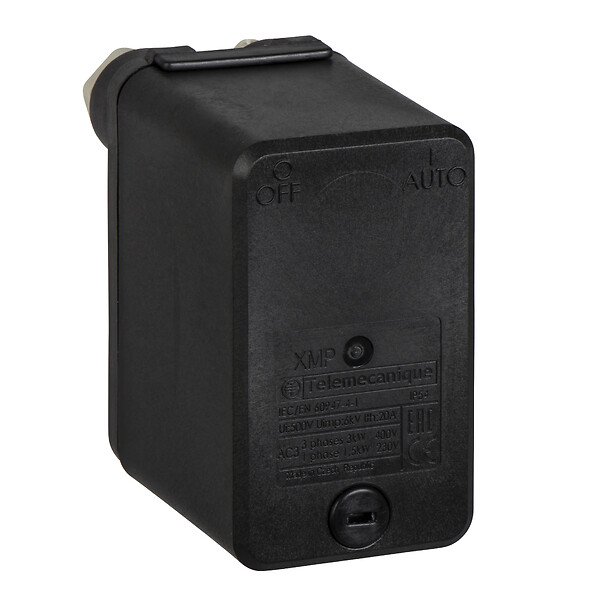

Telemecanique XMPC12C2941S702 Electromechanical pressure sensorXMP - industify.com
Telemecanique

XMPC12C2941S702 Telemecanique

SKU: XMPC12C2941S702

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Pressure sensor type

Electromechanical pressure sensor
Pressure sensor name

XMP
Fluid connection type

G 1/2 (female) conforming to ISO 228
Controlled fluid

Air (0-70 °C), Fresh water (0-70 °C), sea water (0-70 °C)
Cable entry

2 entries incorporating Pg 16 plastic cable gland, cable outer diameter: 12-15 mm conforming to NF C 68-300
Contacts type and composition

3 NC snap action
Product specific application

Not applicable
Pressure switch type of operation

Regulation between 2 thresholds
Electrical connection

Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Electrical circuit type

Power circuit
Scale type

Adjustable differential
Local display

Without
Type of decompression valve

Without
Control type

ON/OFF knob
Terminal block type

6 terminals
Pressure actuator

Diaphragm
Materials in contact with fluid

Chromated zinc alloy
Enclosure material

PA impregnated with fibreglass
Operating position

Any position
Operating rate

10.0000 CYCLE_PER_MINUTE
Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting

Knurled knob and nut
Terminals description ISO n°1

(5-6)NC
Product certifications

EAC
Standards

IEC 60947-4-1
Vibration resistance

3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz)
Shock resistance

50 gn conforming to IEC 60068-2-27
Electrical shock protection class

Class I conforming to IEC 60536
IP degree of protection

IP65 conforming to IEC 60529
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

6.5000 CENTIMETER
Package 1 width

12.0000 CENTIMETER
Package 1 length

17.0000 CENTIMETER
Package 1 weight

508.0000 GRAM
Unit type of package 2

S06
Package 2 height

73.5000 CENTIMETER
Package 2 width

60.0000 CENTIMETER
Package 2 length

80.0000 CENTIMETER
Package 2 weight

76.5000 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Electromechanical Pressure Sensor

Enhance Control and Monitoring: The Telemecanique Pressure Sensor offers precise regulation between two thresholds, providing efficient control over your system’s pressure levels. With a durable chromated zinc alloy diaphragm, this sensor ensures reliable performance even in demanding environments.

Easy Installation and Flexibility: Featuring screw-clamp terminals and a knurled knob for adjustments, this sensor offers easy electrical connection and setup. The adjustable differential and ON/OFF knob provide flexibility in adapting to different pressure settings, making it ideal for various applications.

  • Reliable Performance: Chromated zinc alloy diaphragm for durability
  • Precise Control: Regulation between two thresholds for accurate monitoring
  • Easy Adjustment: ON/OFF knob and adjustable differential for flexible settings
  • Durable Design: Constructed with materials resistant to fluid contact for long-lasting performance
