HomeShopPressure SensorsGauge Pressure SensorsXMPC12C2941C054 Telemecanique

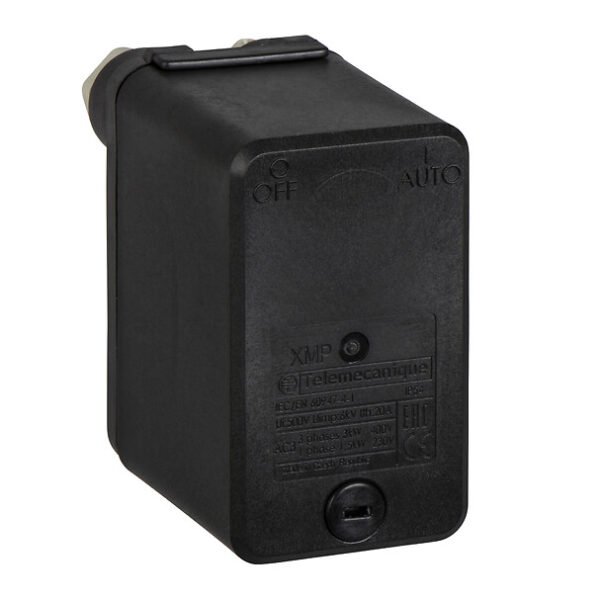

Telemecanique XMPC12C2941C054 Telemecanique Pressure sensors XMElectromechanical pressure sensor - industify.com
Telemecanique

XMPC12C2941C054 Telemecanique

SKU: XMPC12C2941C054

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Pressure sensors XM
Pressure sensor type

Electromechanical pressure sensor
Pressure sensor name

XMP
Fluid connection type

G 1/2 (female) conforming to ISO 228
Controlled fluid

Air (0-70 °C), Fresh water (0-70 °C), sea water (0-70 °C)
Cable entry

2 entries incorporating Pg 16 plastic cable gland, cable outer diameter: 12-15 mm conforming to NF C 68-300
Contacts type and composition

3 NC snap action
Product specific application

Not applicable
Pressure switch type of operation

Regulation between 2 thresholds
Electrical connection

Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Electrical circuit type

Power circuit
Scale type

Adjustable differential
Local display

Without
Type of decompression valve

Without
Control type

ON/OFF knob
Terminal block type

6 terminals
Pressure actuator

Diaphragm
Materials in contact with fluid

Chromated zinc alloy
Enclosure material

PA impregnated with fibreglass
Operating position

Any position
Operating rate

10.0000 CYCLE_PER_MINUTE
Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting

Knurled knob and nut
Terminals description ISO n°1

(5-6)NC
Product certifications

EAC
Standards

IEC 60947-4-1
Vibration resistance

3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz)
Shock resistance

50 gn conforming to IEC 60068-2-27
Electrical shock protection class

Class I conforming to IEC 60536
IP degree of protection

IP65 conforming to IEC 60529
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

6.0000 CENTIMETER
Package 1 width

11.2000 CENTIMETER
Package 1 length

17.0000 CENTIMETER
Package 1 weight

565.0000 GRAM
Unit type of package 2

S03
Package 2 height

30.0000 CENTIMETER
Package 2 width

30.0000 CENTIMETER
Package 2 length

40.0000 CENTIMETER
Package 2 weight

11.7410 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Pressure Sensors XM

Upgrade your system’s monitoring capabilities with the Telemecanique Pressure Sensors XM. This advanced electromechanical pressure sensor offers precise control and regulation between two thresholds, ensuring optimal performance in various applications. With a durable diaphragm made of chromated zinc alloy, the sensor can withstand harsh conditions and be mounted in any position, providing flexibility and reliability.

The Telemecanique Pressure Sensors XM feature a knurled knob and nut for easy adjustment, allowing users to fine-tune settings with ease. The IP65 protection rating safeguards the sensor from dust and water ingress, while the high level of vibration and shock resistance ensures long-lasting performance in challenging environments. Its compact design and user-friendly terminals make installation and maintenance hassle-free, enhancing overall efficiency and reducing downtime.

  • Upgrade your system’s monitoring capabilities
  • Precise control and regulation between two thresholds
  • Durable diaphragm for reliable performance in any position
  • Easy adjustment with knurled knob and nut
  • IP65 protection and high resistance to vibration and shock
  • Compact design for easy installation and maintenance
