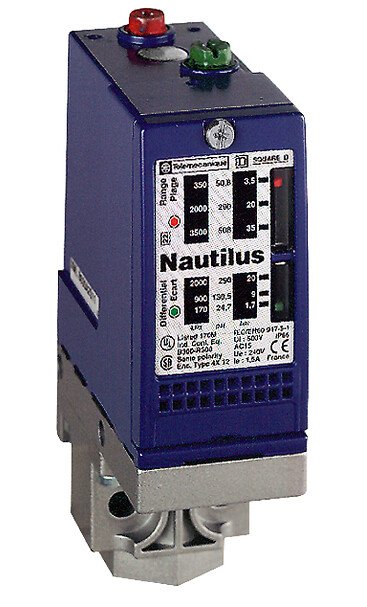

Telemecanique XMLB500N2S11 Electromechanical pressure sensorElectromechanical pressure sensor - industify.com
Telemecanique

XMLB500N2S11 Telemecanique

SKU: XMLB500N2S11

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Product or component type

Electromechanical pressure sensor

Pressure sensor type

Electromechanical pressure sensor

Device short name

XMLB

Controlled fluid

Air (0-160 °C), Corrosive fluid (0-160 °C)

Fluid connection type

G 1/4 (female) conforming to ISO 228

Electrical connection

1 connector Pg 13, 1 x 0.5…2 x 2.5 mm², Screw-clamps terminals

AWG gauge

AWG 20…AWG 14

Cable entry

Cable gland 9-13 mm

Contacts type and composition

1 C/O

Product specific application

Not applicable

Pressure switch type of operation

Regulation between 2 thresholds

Electrical circuit type

Control circuit

Scale type

Adjustable differential

Local display

With

Pressure actuator

Piston

Materials in contact with fluid

FKM, FPM

Enclosure material

Zinc alloy

Terminal block type

4 terminals

Operating rate

60 cyc/mn

Auxiliary contacts operation

Snap action

Contacts material

Silver contacts

Resistance across terminals

25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Setting

External

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping)

Protective treatment

TC standard version

Operating position

Any position

Vibration resistance

4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.2000 CENTIMETER

Package 1 width

4.0000 CENTIMETER

Package 1 length

8.5000 CENTIMETER

Package 1 weight

777.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

10.4710 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Electromechanical Pressure Sensor

The Telemecanique Electromechanical Pressure Sensor is designed to provide accurate and reliable pressure regulation in a variety of environments. With a scale type control circuit and adjustable differential, this sensor ensures precise monitoring and control between two thresholds, enhancing overall system performance. The device’s piston pressure actuator and zinc alloy enclosure material guarantee durability and longevity, making it suitable for demanding applications.

  • Accurate Monitoring: The sensor’s electromechanical design allows for precise regulation between thresholds, ensuring optimal system performance.
  • Durable Construction: Made with FPM and FKM materials in contact with the fluid and a zinc alloy enclosure, this sensor is built to withstand harsh conditions and ensure long-term reliability.
  • Easy Installation: With screw-clamp terminals and a cable gland for electrical connections, this sensor offers quick and convenient installation for seamless integration into your system.
