HomeShopPressure SensorsGauge Pressure SensorsXMLB160N2S11 Telemecanique

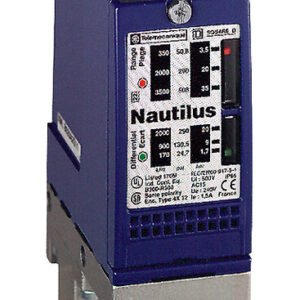

Telemecanique XMLB160N2S11 Electromechanical pressure sensorElectromechanical pressure sensor - industify.com

XMLB160N2S11 Telemecanique

Name: XMLB160N2S11 Telemecanique | Industify
Brand: Telemecanique
SKU: XMLB160N2S11
Price: 1.00 USD
Availability: InStock

SKU: XMLB160N2S11

Add to wishlist Add to compare

Categories: Gauge Pressure Sensors, Pressure Sensors, Sensors Tag: Electromechanical pressure sensor

Product information

Product or component type	Electromechanical pressure sensor
Pressure sensor type	Electromechanical pressure sensor
Device short name	XMLB
Controlled fluid	Air (0-160 °C), Corrosive fluid (0-160 °C)
Fluid connection type	G 1/4 (female) conforming to ISO 228
Electrical connection	1 x 0.5…2 x 2.5 mm², Screw-clamps terminals
AWG gauge	AWG 20…AWG 14
Cable entry	Cable gland 9-13 mm
Contacts type and composition	1 C/O
Product specific application	Not applicable
Pressure switch type of operation	Regulation between 2 thresholds
Electrical circuit type	Control circuit
Scale type	Adjustable differential
Local display	With
Pressure actuator	Piston
Materials in contact with fluid	FKM, FPM
Enclosure material	Zinc alloy
Terminal block type	4 terminals
Operating rate	60 cyc/mn
Auxiliary contacts operation	Snap action
Contacts material	Silver contacts
Resistance across terminals	25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting	External
Standards	IEC 60947-5-1
Product certifications	LROS (Lloyds register of shipping)
Protective treatment	TC standard version
Operating position	Any position
Vibration resistance	4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance	50 gn conforming to IEC 60068-2-27
Electrical shock protection class	Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection	IP66 conforming to IEC 60529
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.2000 CENTIMETER
Package 1 width	12.5000 CENTIMETER
Package 1 length	8.2000 CENTIMETER
Package 1 weight	88.0000 GRAM
Unit type of package 2	S02
Package 2 height	15.0000 CENTIMETER
Package 2 width	30.0000 CENTIMETER
Package 2 length	40.0000 CENTIMETER
Package 2 weight	1.4590 KILOGRAM
Brand	Telemecanique

Description

Description

Description

Telemecanique Electromechanical Pressure Sensor

Enhance your industrial processes with the Telemecanique Electromechanical Pressure Sensor designed to accurately regulate fluid pressure between two thresholds. With its adjustable differential and piston pressure actuator, this sensor ensures precise control over air and corrosive fluid applications. The snap-action silver contacts provide reliable electrical circuit operation, offering peace of mind in critical processes.

Efficiently monitor and adjust fluid pressure with the easy-to-use design
Ensure accurate performance with the high-quality FPM and FKM materials in contact with fluid
Experience long-lasting durability thanks to the robust zinc alloy enclosure and IP66 protection

Invest in the Telemecanique Electromechanical Pressure Sensor for an improved industrial experience with precise pressure control and reliable operation in various fluid applications.
