HomeShopPressure SensorsGauge Pressure SensorsXMLB160D2S12 Telemecanique

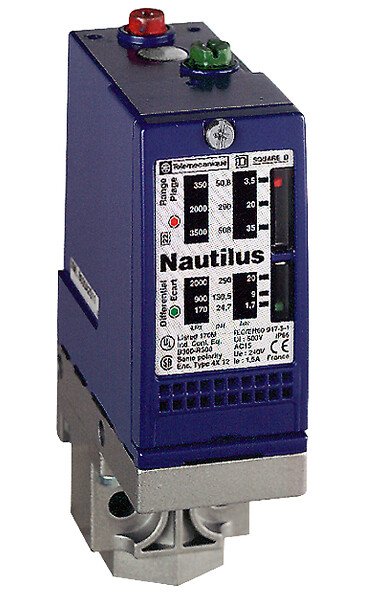

Telemecanique XMLB160D2S12 Electromechanical pressure sensorElectromechanical pressure sensor - industify.com
Telemecanique

XMLB160D2S12 Telemecanique

SKU: XMLB160D2S12

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Product or component type

Electromechanical pressure sensor

Pressure sensor type

Electromechanical pressure sensor

Device short name

XMLB

Controlled fluid

hydraulic oil (0-160 °C)

Fluid connection type

G 1/4 (female) conforming to ISO 228

Electrical connection

1 x 0.5…2 x 2.5 mm², Screw-clamps terminals

AWG gauge

AWG 20…AWG 14

Cable entry

Cable gland 7-13 mm

Contacts type and composition

1 C/O

Product specific application

Not applicable

Pressure switch type of operation

Regulation between 2 thresholds

Electrical circuit type

Control circuit

Scale type

Adjustable differential

Local display

With

Pressure actuator

Piston

Materials in contact with fluid

FKM, FPM

Enclosure material

Zinc alloy

Terminal block type

4 terminals

Operating rate

60 cyc/mn

Auxiliary contacts operation

Snap action

Contacts material

Silver contacts

Resistance across terminals

25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Setting

External

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping)

Protective treatment

TC standard version

Operating position

Any position

Vibration resistance

4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0000 CENTIMETER

Package 1 width

8.5000 CENTIMETER

Package 1 length

12.0000 CENTIMETER

Package 1 weight

781.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

10.4200 KILOGRAM

Unit type of package 3

P06

Package 3 height

75.0000 CENTIMETER

Package 3 width

80.0000 CENTIMETER

Package 3 length

60.0000 CENTIMETER

Package 3 weight

174.7200 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Electromechanical Pressure Sensor – XMLB160D2S12

The Telemecanique Electromechanical Pressure Sensor offers reliable performance and precise control for hydraulic oil applications, ensuring optimal efficiency and system protection. With adjustable thresholds and a snap action design, this pressure sensor facilitates seamless regulation between set parameters, enhancing operational stability. The durable zinc alloy construction and FPM, FKM materials in contact with fluid guarantee long-lasting durability and compatibility with a wide range of industrial environments.

  • Enhanced Control: Regulate pressure levels with precision and efficiency for improved system performance.
  • Durable Construction: Benefit from a robust design featuring high-quality materials to ensure long-term reliability and resistance to harsh conditions.
  • Precision Monitoring: Monitor pressure levels accurately with a local display and adjustable differential control for optimal operational control.
