Name: XMLB020A2S13 Telemecanique | Industify
Brand: Telemecanique
SKU: XMLB020A2S13
Price: 1.00 USD
Availability: InStock

Product or component type

Electromechanical pressure sensor

Pressure sensor type

Electromechanical pressure sensor

Device short name

XMLB

Controlled fluid

Air (0-70 °C), Fresh water (0-70 °C), hydraulic oil (0-70 °C)

Fluid connection type

1/4" – 18 NPTF (female)

Electrical connection

1 x 0.5…2 x 2.5 mm², Screw-clamps terminals

AWG gauge

AWG 20…AWG 14

Cable entry

Cable gland 7-13 mm

Contacts type and composition

1 C/O

Product specific application

Not applicable

Pressure switch type of operation

Regulation between 2 thresholds

Electrical circuit type

Control circuit

Scale type

Adjustable differential

Local display

With

Pressure actuator

Diaphragm

Materials in contact with fluid

Brass

Enclosure material

Zinc alloy

Terminal block type

4 terminals

Operating rate

120 cyc/mn

Auxiliary contacts operation

Snap action

Contacts material

Silver contacts

Resistance across terminals

25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Setting

External

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping)

Protective treatment

TC standard version

Operating position

Any position

Vibration resistance

4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.2000 CENTIMETER

Package 1 width

12.5000 CENTIMETER

Package 1 length

8.0000 CENTIMETER

Package 1 weight

723.0000 GRAM

Brand

Telemecanique

Description

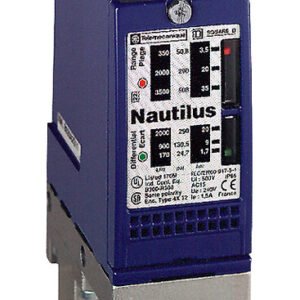

Telemecanique Electromechanical Pressure Sensor – XMLB020A2S13

Enhance your system’s efficiency with the Telemecanique Electromechanical Pressure Sensor. This sensor offers precise control over various fluids, including air, fresh water, and hydraulic oil, ensuring optimal performance within a wide temperature range. The adjustable differential and diaphragm design allow for accurate regulation between two thresholds, enabling seamless operation in diverse applications.

Reliable Performance: With snap action silver contacts and a sturdy brass and zinc alloy construction, this pressure sensor ensures long-lasting and reliable performance in demanding industrial environments.
Easy Installation: Featuring screw-clamp terminals and a secure cable gland, the sensor offers straightforward electrical and fluid connections, simplifying installation processes.
Durable Design: With IP66 protection and resistance to vibration and shocks, this sensor is built to withstand harsh conditions, guaranteeing uninterrupted operation.
