Name: XMLB010A2S13 Telemecanique | Industify
Brand: Telemecanique
SKU: XMLB010A2S13
Price: 1.00 USD
Availability: InStock

Product or component type

Electromechanical pressure sensor

Pressure sensor type

Electromechanical pressure sensor

Device short name

XMLB

Controlled fluid

Air (0-70 °C), Fresh water (0-70 °C), hydraulic oil (0-70 °C)

Fluid connection type

1/4" – 18 NPTF (female)

Electrical connection

1 x 0.5…2 x 2.5 mm², Screw-clamps terminals

AWG gauge

AWG 20…AWG 14

Cable entry

Cable gland 7-13 mm

Contacts type and composition

1 C/O

Product specific application

Not applicable

Pressure switch type of operation

Regulation between 2 thresholds

Electrical circuit type

Control circuit

Scale type

Adjustable differential

Local display

With

Pressure actuator

Diaphragm

Materials in contact with fluid

FKM, FPM

Enclosure material

Zinc alloy

Terminal block type

4 terminals

Operating rate

120 cyc/mn

Auxiliary contacts operation

Snap action

Contacts material

Silver contacts

Resistance across terminals

25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Setting

External

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping)

Protective treatment

TC standard version

Operating position

Any position

Vibration resistance

4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.8000 CENTIMETER

Package 1 width

8.0000 CENTIMETER

Package 1 length

11.8000 CENTIMETER

Package 1 weight

740.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

9.7140 KILOGRAM

Brand

Telemecanique

Description

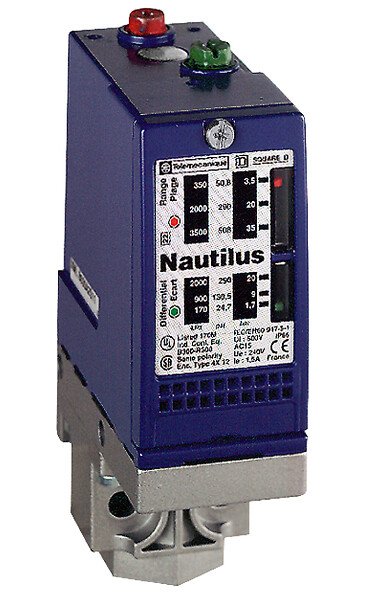

Telemecanique Electromechanical Pressure Sensor

The Telemecanique Electromechanical Pressure Sensor is designed to accurately regulate pressure in various controlled fluids such as air, fresh water, and hydraulic oil. With adjustable thresholds and differential settings, this pressure sensor offers precise control over the pressure switching operation, enhancing system efficiency and performance. The zinc alloy construction ensures durability while the FPM and FKM materials in contact with fluids maintain quality and reliability.

Ensures accurate pressure regulation in a wide range of controlled fluids
Precise control over pressure switching operation for enhanced system efficiency
Durable construction with high-quality materials for long-lasting reliability
