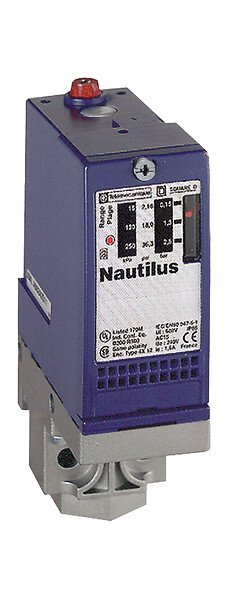

Name: XMLA010A2S12 Telemecanique | Industify
Brand: Telemecanique
SKU: XMLA010A2S12
Price: 1.00 USD
Availability: InStock

Product or component type

Electromechanical pressure sensor

Pressure sensor type

Electromechanical pressure sensor

Device short name

XMLA

Controlled fluid

Air (0-70 °C), Fresh water (0-70 °C), hydraulic oil (0-70 °C)

Fluid connection type

G 1/4 (female) conforming to ISO 228

Electrical connection

1 connector ISO M20, 1 x 0.5…2 x 2.5 mm², Screw-clamps terminals

AWG gauge

AWG 20…AWG 14

Cable entry

Cable gland 7-13 mm

Contacts type and composition

1 C/O

Product specific application

Not applicable

Pressure switch type of operation

Detection of 1 single threshold

Electrical circuit type

Control circuit

Scale type

Fixed differential

Local display

With

Pressure actuator

Diaphragm

Materials in contact with fluid

FKM, FPM

Enclosure material

Zinc alloy

Terminal block type

4 terminals

Operating rate

120 cyc/mn

Auxiliary contacts operation

Snap action

Contacts material

Silver contacts

Resistance across terminals

25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A

Setting

External

Standards

IEC 60947-5-1

Product certifications

LROS (Lloyds register of shipping)

Protective treatment

TC standard version

Operating position

Any position

Vibration resistance

4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 1140, Class I conforming to IEC 536, class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.2000 CENTIMETER

Package 1 width

12.1000 CENTIMETER

Package 1 length

8.5000 CENTIMETER

Package 1 weight

705.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

9.4310 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Electromechanical Pressure Sensor

The Telemecanique Electromechanical Pressure Sensor offers reliable and precise pressure detection for a variety of controlled fluids, including air, fresh water, and hydraulic oil. With its easy-to-use design and durable materials, this pressure sensor ensures accurate monitoring and control of pressure levels in different applications.

Flexible Fluid Compatibility: Suitable for use with various fluids within a temperature range of 0-70 °C.
Robust Construction: Constructed with high-quality materials such as FPM, FKM, and zinc alloy for long-lasting performance.
Precise Monitoring: The sensor features snap action silver contacts and a diaphragm for accurate pressure detection.

Whether you need to monitor pressure in air systems, water lines, or hydraulic setups, the Telemecanique Electromechanical Pressure Sensor is designed to enhance performance and ensure operational efficiency in a wide range of industrial applications.
