Name: XMEP060BD21F Telemecanique | Industify
Brand: Telemecanique
SKU: XMEP060BD21F
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Pressure sensors XM

Product or component type

Electronic pressure sensors

Pressure sensor type

Pressure transmitter

Pressure sensor name

XMEP

Electrical circuit type

Control circuit

Local display

Without

Controlled fluid

air (-30-125 °C), Fresh water (0-125 °C), hydraulic oil (-30-125 °C)

Fluid connection type

G 1/4A (male) conforming to DIN 3852-E

Electrical connection

1 male connector M12 4 pins

[Us] rated supply voltage

12…24 V DC SELV (voltage limits: 9-36 V)

Current consumption

23 mA

Type of output signal

Analogue

Analogue output function

2-wire, 4…20 mA

Quantity per set

Set of 1

Type of packing

Individual

Materials in contact with fluid

Stainless steel AISI 316L

Operating position

Any position

Protection type

Reverse polarity

Electromagnetic compatibility

15 kV contact, electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 criteria A 4 kV, Electrostatic discharge immunity test conforming to ISO 10605 criteria A 15 kV air, susceptibility to conducted disturbances conforming to EN/IEC 61000-4-6 criteria A 30 V 0.15…80 MHz, susceptibility to conducted transient disturbances conforming to ISO 7637-2 criteria B level 3, susceptibility to electromagnetic fields conforming to ISO 11452-2 criteria A 100 V/m 200…2000 MHz, susceptibility to electromagnetic fields conforming to ISO 11452-4 criteria A 100 mA 20…400 MHz

Response time on output

= 2 ms 10…90 % of full scale

Measurement accuracy

+/- 0, 5 % de la plage de mesure

Accuracy

0.1 % of the measuring range

Drift of the sensitivity

+/- 0, 02 % of measuring range/°K

Drift of the zero point

+/- 0, 02 % of measuring range/°K

Repeat accuracy

+/- 0.5 % of the measuring range

Standards

ISO 14982

Product certifications

CULus

Vibration resistance

12 gn sinus (f = 20-520 Hz) test 4 conforming to ISO 16750-3, 18 gn random (f = 10-2000 Hz) test 4 conforming to ISO 16750-3

Shock resistance

50 gn for 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP65 conforming to EN/IEC 60529, IP67 conforming to EN/IEC 60529, IP69K conforming to EN/IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.1000 CENTIMETER

Package 1 width

4.5000 CENTIMETER

Package 1 length

8.5000 CENTIMETER

Package 1 weight

95.0000 GRAM

Brand

Telemecanique

Description

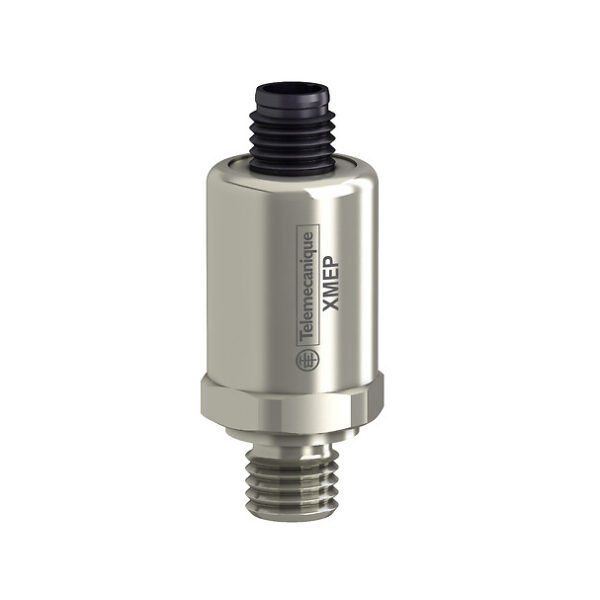

Telemecanique Electronic Pressure Sensor XMEP060BD21F

Enhance Your Operations: The Telemecanique Electronic Pressure Sensor offers precise and reliable pressure measurements, ensuring optimal performance of your systems. With a wide operating temperature range and resistance to various fluids, this sensor provides consistent results in diverse environments.

Effortless Installation: The sensor’s compact design and versatile fluid connection type allow for easy integration into your setup. Its durable construction and protection against electromagnetic interference guarantee long-term functionality and stability.

Enhanced Accuracy: Achieve accurate pressure readings for your applications with minimal drift and repeat accuracy for improved efficiency.
Robust and Reliable: Built to withstand vibrations, shocks, and varying environmental conditions, this sensor offers durability and longevity for your industrial needs.
Easy Maintenance: With a simple electrical connection and user-friendly local display, monitoring and managing the sensor is convenient and hassle-free.
