HomeShopSafety SwitchesMechanic Safety SwitchXCSLF3737313 Telemecanique

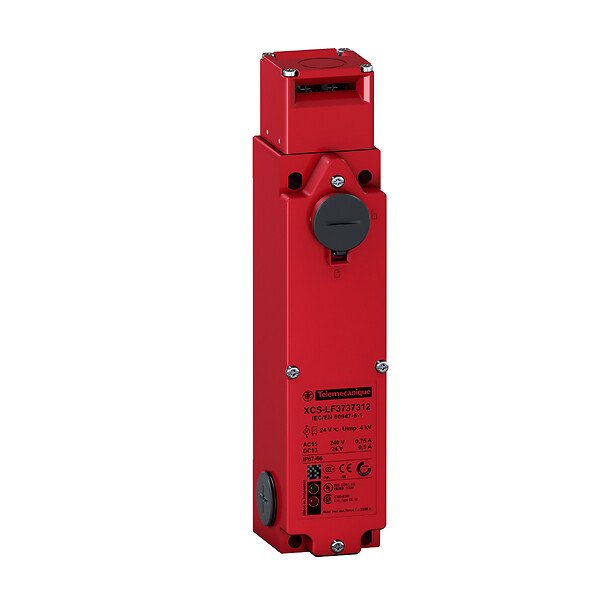

Telemecanique XCSLF3737313 Telemecanique Safety switches XCSSafety switch - industify.com
Telemecanique

XCSLF3737313 Telemecanique

SKU: XCSLF3737313

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety switches XCS

Product or component type

Safety switch

Component name

XCSLF

Design

Slim

material

Metal

Head type

Key operated turret head

Contacts type and composition

2 NC + 1 NO

Solenoid contacts type and composition

2 NC + 1 NO (slow-break, break before make)

Cable entry

3 entries tapped for 1/2" NPT

Electromagnet interlocking

Locking on de-energisation and unlocking on energisation of solenoid

[Us] rated supply voltage

24 V – 15…10 %

Electrical connection

clamping capacity: 1 x 1.5 mm² flexible or solid cable, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends, Spring terminal

Local signalling

1 LED (green) for actuator inserted and locked, 1 LED (orange) for actuator withdrawn

Signalling circuit voltage

24 V

Contact operation

break before make, Slow-break

Locking options description

locking by solenoid, With interlocking

Positive opening

With NC contact

Supply voltage type

AC/DC

Supply frequency

50/60 Hz

Signalling circuit type

AC/DC

Maximum load current

= 15 A

Actuator forcible withdrawal rtc

3000.0000 NEWTON

Actuator force for extraction

20.0000 NEWTON

Operating rate

10 cyc/mn for maximum durability

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508

Safety reliability data

B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear

Body Material

Zamak

Head material

Zamak

Standards

IEC 60204-1

Product certifications

UL

Protective treatment

TC

Vibration resistance

5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn for 11 ms conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to IEC 61140

IP degree of protection

IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1, IP67

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.6000 CENTIMETER

Package 1 width

7.5000 CENTIMETER

Package 1 length

22.9000 CENTIMETER

Package 1 weight

1.2740 KILOGRAM

Unit type of package 2

PAL

Package 2 height

60.0000 CENTIMETER

Package 2 width

80.0000 CENTIMETER

Package 2 length

128.0000 CENTIMETER

Package 2 weight

163.0720 KILOGRAM

Unit type of package 3

S02

Package 3 height

15.0000 CENTIMETER

Package 3 width

30.0000 CENTIMETER

Package 3 length

40.0000 CENTIMETER

Package 3 weight

11.0750 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Switches XCS: Ensuring Enhanced Safety and Reliability

Experience peace of mind knowing that the Telemecanique Safety Switches XCS are designed to provide reliable safety interlocking functions. With a key-operated turret head and positive opening mechanism, users can trust in the secure operation of this slim, metal safety switch.

  • Benefit from the convenience of locking on de-energization and unlocking on energization of the solenoid, offering a smooth and efficient user experience.
  • Ensure safety compliance with category 4 capability when paired with the correct monitoring system, conforming to ISO standards.
  • With Zamak construction and IP66/IP67 degree of protection, these safety switches are built to withstand harsh environments while providing a long-lasting safety solution.
