Telemecanique XCSLE373731M3 Telemecanique Safety switches XCSSafety switch - industify.com
Telemecanique

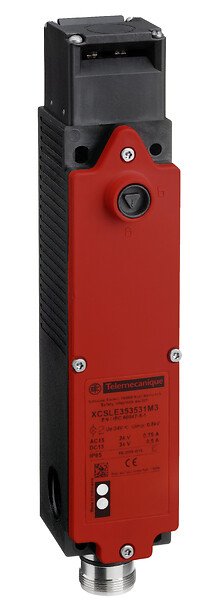

XCSLE373731M3 Telemecanique

SKU: XCSLE373731M3

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety switches XCS

Product or component type

Safety switch

Component name

XCSLE

Design

Slim

material

Plastic

Head type

Key operated turret head

Contacts type and composition

2 NC + 1 NO

Solenoid contacts type and composition

2 NC + 1 NO (slow-break, break before make)

Electromagnet interlocking

Locking on de-energisation and unlocking on energisation of solenoid

[Us] rated supply voltage

24 V – 15…10 %

Electrical connection

19 pins, Male connector M23

Local signalling

1 LED (green) for actuator inserted and locked, 1 LED (orange) for actuator withdrawn

Signalling circuit voltage

24 V

Contact operation

break before make, Slow-break

Locking options description

locking by solenoid, With interlocking

Positive opening

With NC contact

Supply voltage type

AC/DC

Supply frequency

50/60 Hz

Signalling circuit type

AC/DC

Maximum load current

= 15 A

Actuator forcible withdrawal rtc

1400.0000 NEWTON

Actuator force for extraction

20.0000 NEWTON

Operating rate

10 cyc/mn for maximum durability

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 conforming to EN/IEC 61508

Safety reliability data

B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear

Body Material

PA (polyamide)

Head material

PA (polyamide)

Standards

EN/IEC 60204-1

Product certifications

UL

Protective treatment

TC

Vibration resistance

5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn for 11 ms conforming to IEC 60068-2-27

Electrical shock protection class

Class I conforming to EN/IEC 61140

IP degree of protection

IP65, IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.0000 CENTIMETER

Package 1 width

7.5000 CENTIMETER

Package 1 length

24.5000 CENTIMETER

Package 1 weight

688.0000 GRAM

Unit type of package 2

PAL

Package 2 height

60.0000 CENTIMETER

Package 2 width

80.0000 CENTIMETER

Package 2 length

128.0000 CENTIMETER

Package 2 weight

100.1600 KILOGRAM

Unit type of package 3

S02

Package 3 height

15.0000 CENTIMETER

Package 3 width

30.0000 CENTIMETER

Package 3 length

40.0000 CENTIMETER

Package 3 weight

6.0790 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Switch XCSLE373731M3

The Telemecanique Safety Switch XCSLE373731M3 is designed to prioritize safety and efficiency in industrial operations. With a slim and durable plastic design, this safety switch offers reliable performance in diverse environments. The key-operated turret head ensures secure locking on de-energization and smooth unlocking on solenoid energization, enhancing operational safety.

  • Enhanced Safety: The XCSLE373731M3 features two NC + 1 NO contacts with slow-break functionality, providing optimal protection during machine operation.
  • Efficient Signalling: Local signaling is facilitated through LEDs for clear indication of actuator status, promoting efficient monitoring of machine processes.
  • Durable Construction: With a robust body and head material, as well as IP65 protection, this safety switch is built to withstand demanding industrial settings for long-term reliability.
