HomeShopSafety SwitchesMagnetic Safety SwitchXCSDMP50010 Telemecanique

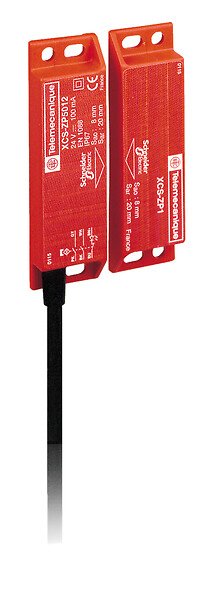

Telemecanique XCSDMP50010 Telemecanique Safety switches XCSCoded magnetic switch - industify.com
Telemecanique

XCSDMP50010 Telemecanique

SKU: XCSDMP50010

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety switches XCS

Product or component type

Coded magnetic switch

Component name

XCSDMP

Design

Rectangular, standard

Size

88 x 25 x 13 mm

Contacts type and composition

1 NC + 2 NO

Contact operation

1 NO staggered

material

Plastic

Electrical connection

Pre-cabled

Cable composition

6 x 0.25 mm²

Approach directions

3 directions

[Ue] rated operational voltage

24 V DC

[Ie] rated operational current

100.0000 MILLIAMPERE

Contacts material

Rhodium

Switching capacity in mA

0.1…100 mA

Insulation resistance

1000 MOhm

Switching Frequency

150 Hz

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Enclosure material

Thermoplastic PBT

Cable material

PVC

Standards

IEC 60204-1

Product certifications

UL

Protective treatment

TH

Vibration resistance

10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn for 11 ms conforming to IEC 60068-2-27

Sensitivity to magnetic fields

0.3000 MILLITESLA

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.6000 CENTIMETER

Package 1 width

20.0000 CENTIMETER

Package 1 length

20.6000 CENTIMETER

Package 1 weight

613.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

5.1800 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Switches XCSDMP50010

Experience enhanced safety and reliability with the Telemecanique Safety Switches XCSDMP50010. This magnetic switch offers a compact and robust design, making it ideal for a wide range of applications. With a switching capacity of up to 100mA and an insulation resistance of 1000 MOhm, this switch ensures secure and efficient operation.

  • Ensure optimal protection with its IP66 and IP67 degree of protection, providing resistance against water and dust ingress.
  • Benefit from versatile electrical connections and cable compositions, making installation quick and straightforward.
  • Reach category 4 safety levels with the appropriate monitoring system, offering peace of mind in demanding industrial environments.
