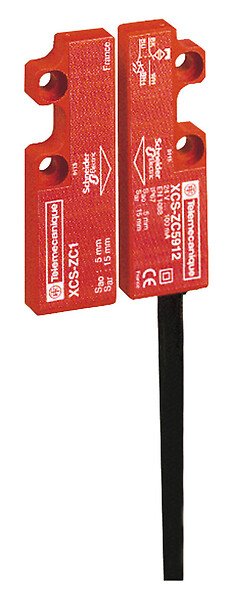

Name: XCSDMC7905 Telemecanique | Industify
Brand: Telemecanique
SKU: XCSDMC7905
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Safety switches XCS

Product or component type

Coded magnetic switch

Component name

XCSDMC

Design

Compact, Rectangular

Size

51 x 16 x 7 mm

Contacts type and composition

2 NC

Contact operation

staggered

material

Plastic

Electrical connection

Pre-cabled

Cable composition

4 x 0.25 mm²

Approach directions

3 directions

[Ue] rated operational voltage

24 V DC

[Ie] rated operational current

100.0000 MILLIAMPERE

Contacts material

Rhodium

Switching capacity in mA

0.1…100 mA

Insulation resistance

1000 MOhm

Switching Frequency

150 Hz

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Enclosure material

Thermoplastic PBT

Cable material

PVC

Standards

IEC 60204-1

Product certifications

Protective treatment

Vibration resistance

10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn for 11 ms conforming to IEC 60068-2-27

Sensitivity to magnetic fields

0.3000 MILLITESLA

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.1000 CENTIMETER

Package 1 width

21.0000 CENTIMETER

Package 1 length

23.7000 CENTIMETER

Package 1 weight

214.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

3.5600 KILOGRAM

Brand

Telemecanique

Description

Telemecanique Safety Switches XCSCoded Magnetic Switch XCSDMC7905

The Telemecanique Safety Switches XCSDMC7905 offers a compact and efficient solution for ensuring safety in industrial settings. With its staggered contacts and three approach directions, this magnetic switch provides reliable performance in a small form factor. The plastic construction and pre-cabled design make installation quick and hassle-free, saving time and effort for users.

Compact and rectangular design for easy integration
Durable plastic construction ensures longevity
Pre-cabled for convenient installation

With ratings for safety levels up to SIL 3, the XCSDMC7905 ensures compliance with stringent industry standards for safety systems. The vibration and shock resistance capabilities make this switch suitable for demanding environments, providing peace of mind for users relying on its performance. Overall, the Telemecanique Safety Switches XCSDMC7905 embodies reliability and efficiency in a compact package.
