Name: XCSDMC7902EX Telemecanique | Industify
Brand: Telemecanique
SKU: XCSDMC7902EX
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Safety switches XCS

Product or component type

Coded magnetic switch

Device short name

XCSDMC

material

Plastic

Contacts type and composition

2 NC

Contact operation

staggered

Electrical connection

Pre-cabled

Cable composition

4 x 0.25 mm²

Design

Compact, Rectangular

Size

51 x 16 x 7 mm

Approach directions

3 directions

[Ue] rated operational voltage

24 V DC

[Ie] rated operational current

100.0000 MILLIAMPERE

Contacts material

Rhodium

Switching capacity in mA

0.1…100 mA

Insulation resistance

1000 MOhm

Switching Frequency

150 Hz

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Protective treatment

Vibration resistance

10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn for 11 ms conforming to IEC 60068-2-27

Sensitivity to magnetic fields

0.3000 MILLITESLA

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Enclosure material

Thermoplastic PBT

Cable material

PVC

Dust zone

Zone 0 – 1 – 2/20 – 21 – 22

Product certifications

INERIS 07ATEX0036

Standards

EN 60079-18

Directives

2014/34/EU – ATEX directive

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.0000 CENTIMETER

Package 1 width

14.0000 CENTIMETER

Package 1 length

14.0000 CENTIMETER

Package 1 weight

117.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

2.6370 KILOGRAM

Brand

Telemecanique

Description

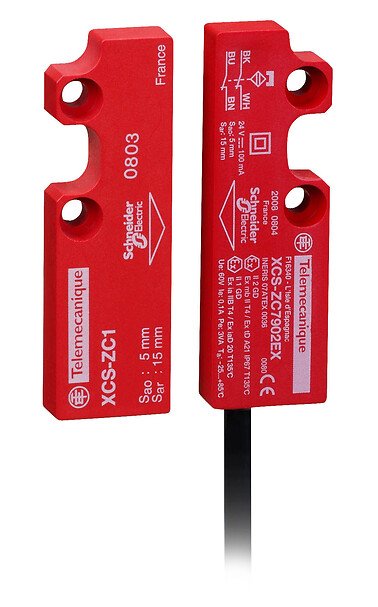

Telemecanique Safety Switches XCS Coded Magnetic Switch XCSDMC7902EX

Enhance Safety: The Telemecanique Safety Switches XCSDMC series, including the XCSDMC7902EX model, provides a reliable way to ensure the safety of your industrial processes. With its advanced design and materials, this safety switch offers a high level of protection against electrical shocks and other potential hazards, giving you peace of mind in your operations.

Robust Construction: Built to withstand challenging environments, this safety switch features a durable construction with superior vibration resistance, shock resistance, and sensitivity to magnetic fields. The IP66 and IP67 degree of protection ensures reliable performance even in dusty or wet conditions, making it suitable for a wide range of applications.

Easy Installation: Compact in size and pre-cabled, the XCSDMC7902EX is easy to install and integrate into your existing systems, saving you time and effort.
Compliance and Certification: With certifications and compliance to industry standards like ATEX directive and IEC 61508, this safety switch meets the highest safety and reliability requirements, ensuring compliance with regulatory standards.
Long-lasting Performance: Designed for a long life span limited by mechanical or contact wear, this safety switch offers consistent and long-lasting performance for your industrial applications.
