HomeShopSafety SwitchesMechanic Safety SwitchXCSD3919N12 Telemecanique

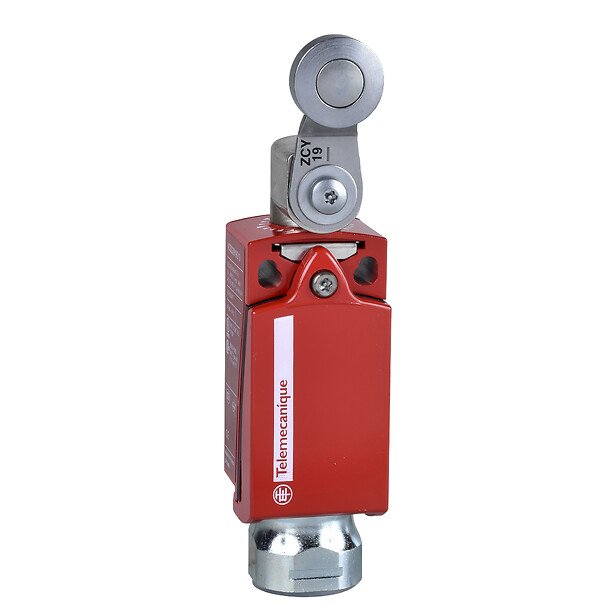

Telemecanique XCSD3919N12 Telemecanique Safety switches XCSSafety limit switch - industify.com
Telemecanique

XCSD3919N12 Telemecanique

SKU: XCSD3919N12

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety switches XCS

Product or component type

Safety limit switch

Component name

XCSD

Design

Compact

material

Metal

Head type

Rotary head

Protection technology

Plastic protective cover, secured by 5-lobe socket head safety screw

Type of operator

Steel roller lever

Contact operation

Snap action

Contacts type and composition

1 NC + 1 NC + 1 NO

Cable entry

1 entry tapped for 1/2" NPT

Electrical connection

Terminal

Clamping connection capacity

1 x 0.34…2 x 0.75 mm²

Positive opening

With NC contact

Switch actuation

By 30° cam

Contact code designation

R300, AC-15 (Ue = 240 V, B300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Repeat accuracy

0.1 mm on tripping points, 1 million operating cycles for head with end plunger

Enclosure material

Plastic

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Body Material

Zamak

Head material

Zamak

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Protective treatment

TC

Product certifications

UL

Electrical shock protection class

Class I

Standards

IEC 60204-1

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

IK degree of protection

IK06 conforming to IEC 62262

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.5000 CENTIMETER

Package 1 width

3.3000 CENTIMETER

Package 1 length

4.3000 CENTIMETER

Package 1 weight

263.0000 GRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Switch XCSD3919N12

The Telemecanique Safety Switch XCSD3919N12 offers reliable protection for your equipment and personnel, ensuring peace of mind in hazardous environments. With a robust metal design and steel roller lever, this safety limit switch provides durable performance backed by industry-standard certifications. The compact size and rotary head make installation and operation straightforward, enhancing overall efficiency.

  • Ensures safety with snap action contacts
  • Offers flexible cable entry for easy installation
  • Provides high resistance levels for long-term reliability

With excellent resistance to shock and vibration, this Telemecanique Safety Switch guarantees safety reliability in various industrial settings. The IP66 and IP67 protection ratings, along with SIL 3 and category 4 capabilities, demonstrate the switch’s high performance and reliable operation. Invest in the XCSD3919N12 for superior safety and uncompromising quality in your industrial applications.
