HomeShopSafety SwitchesMechanic Safety SwitchXCSD3719N12 Telemecanique

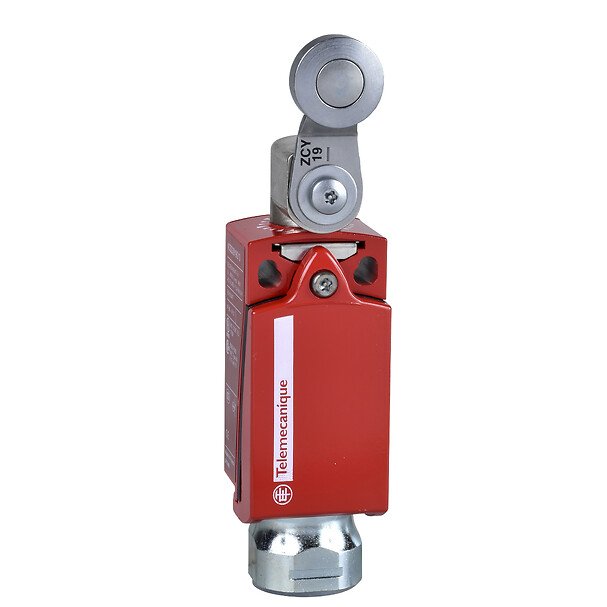

Telemecanique XCSD3719N12 Telemecanique Safety switches XCSSafety limit switch - industify.com
Telemecanique

XCSD3719N12 Telemecanique

SKU: XCSD3719N12

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Telemecanique Safety switches XCS

Product or component type

Safety limit switch

Component name

XCSD

Design

Compact

material

Metal

Head type

Rotary head

Protection technology

Plastic protective cover, secured by 5-lobe socket head safety screw

Type of operator

Steel roller lever

Contact operation

break before make, Slow-break

Contacts type and composition

1 NC + 1 NC + 1 NO

Cable entry

1 entry tapped for 1/2" NPT

Electrical connection

Terminal

Clamping connection capacity

1 x 0.34…2 x 0.75 mm²

Positive opening

With NC contact

Switch actuation

By 30° cam

Contact code designation

R300, AC-15 (Ue = 240 V, B300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Repeat accuracy

0.1 mm on tripping points, 1 million operating cycles for head with end plunger

Enclosure material

Plastic

Safety level

can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508, Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1

Body Material

Zamak

Head material

Zamak

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Protective treatment

TC

Product certifications

UL

Electrical shock protection class

class I conforming to NF C 20-030

Standards

EN/IEC 60204-1

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

IK degree of protection

IK06 conforming to EN 50102

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.5000 CENTIMETER

Package 1 width

3.3000 CENTIMETER

Package 1 length

4.3000 CENTIMETER

Package 1 weight

263.0000 GRAM

Brand

Telemecanique

Description

Description

Telemecanique Safety Switch XCSD3719N12

Enhance Safety and Reliability: This Telemecanique safety limit switch is designed to provide a secure operating environment with its positive opening feature and resistance to electrical shock. With a repeat accuracy of 0.1 mm and a durable construction, it ensures consistent performance and long-term reliability.

Robust Construction: The compact metal design with a steel roller lever and plastic protective cover ensures durability and longevity, even in demanding industrial settings. The switch is resistant to vibrations and shocks, with IP66 and IP67 protection ratings for reliable operation in harsh conditions.

Easy Installation and Integration: With a simple cable entry and electrical connections, this safety switch can be easily integrated into existing systems. Its compact size and lightweight design make it suitable for a wide range of applications, providing peace of mind and efficient operation for users in various industries.
