Name: XCKN2101P16 Telemecanique | Industify
Brand: Telemecanique
SKU: XCKN2101P16
Price: 1.00 USD
Availability: InStock

Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCKN

Sensor design

Compact form A

Body type

Fixed

Head type

Rotary head

material

Plastic

Body Material

Plastic

Head material

Plastic

Fixing mode

By the body

Movement of operating head

Rotary

Type of operator

Spring return without operating lever

Type of approach

Lateral approach, 2 directions

Cable entry

1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 7-13 mm

Contacts type and composition

1 NC + 1 NO

Contact operation

Snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm²

Contacts insulation form

Positive opening

With

Contact code designation

A300, Ie = 3 A, R300, AC-15 (Ue = 240 V), DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A

Terminals description ISO n°1

(13-14)NO

Shock resistance

45 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK04 conforming to EN 50102

Overvoltage category

Class II conforming to IEC 61140, class II conforming to NF C 20-030

Protective treatment

Product certifications

Standards

EN 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

11.0000 CENTIMETER

Package 1 width

16.0000 CENTIMETER

Package 1 length

31.0000 CENTIMETER

Package 1 weight

79.0000 GRAM

Unit type of package 2

BB1

Package 2 height

11.0000 CENTIMETER

Package 2 width

16.0000 CENTIMETER

Package 2 length

31.0000 CENTIMETER

Package 2 weight

1.5800 KILOGRAM

Unit type of package 3

S03

Package 3 height

30.0000 CENTIMETER

Package 3 width

30.0000 CENTIMETER

Package 3 length

40.0000 CENTIMETER

Package 3 weight

5.3380 KILOGRAM

Brand

Telemecanique

Description

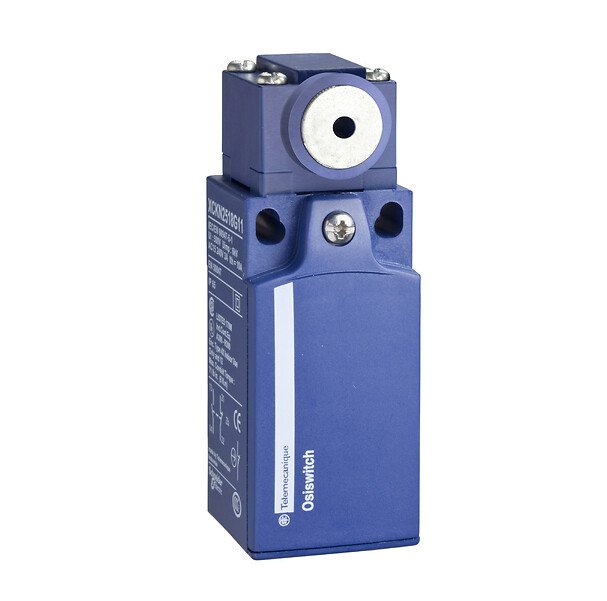

Telemecanique XC Standard Limit Switch

The Telemecanique XC Standard Limit Switch offers reliable and durable performance for a wide range of industrial applications. With a compact form and rotary head design, this limit switch is easy to install and provides precise sensing capabilities. The plastic body and head materials ensure longevity and resistance to harsh operating conditions, making it ideal for demanding environments.

Easy Installation: The fixed body type and lateral approach allow for straightforward installation and setup.
High Precision: The snap-action contact operation guarantees accurate and reliable performance for critical sensing applications.
Durable Construction: With IP65 and IK04 protection ratings, this limit switch is designed to withstand shock, vibration, and environmental elements, ensuring long-term functionality.

Enhance your industrial automation system with the Telemecanique XC Standard Limit Switch, a trustworthy solution that delivers consistent performance in challenging conditions. Trust in Telemecanique for quality and reliability in your automation components.
