Name: XCE181C Telemecanique | Industify
Brand: Telemecanique
SKU: XCE181C
Price: 1.00 USD
Availability: InStock

Series name

Basic

Product or component type

Limit switch

Product specific application

Medium duty

Device short name

XCE

Body type

Fixed

Head type

Multi-directional head

material

Plastic and metal

Fixing mode

By the body

Movement of operating head

Multi-directional

Type of operator

Cat's whisker plastic and metal

Switch actuation

By any moving part

Type of approach

Multi-directional approach

Electrical connection

clamping capacity: 1 x 1.5 mm², Screw-clamp terminals

Cable entry

1 flexible rubber cable gland, cable outer diameter: 6-9 mm

Contact operation

Snap action

Positive opening

Without

Contacts insulation form

Operating rate

120.0000 CYCLE_PER_MINUTE

Contact code designation

A300, AC (Ue = 240 V), DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1, Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300

Resistance across terminals

25 MOhm

Terminals description ISO n°1

(3-4-1-2)OF

Shock resistance

30 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP65 conforming to IEC 60529

Electrical shock protection class

Class I conforming to IEC 60947-5-1

Marking

Standards

GB 14048.5

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.0000 CENTIMETER

Package 1 width

5.0000 CENTIMETER

Package 1 length

17.5000 CENTIMETER

Package 1 weight

133.0000 GRAM

Unit type of package 2

S02

Package 2 height

15.0000 CENTIMETER

Package 2 width

30.0000 CENTIMETER

Package 2 length

40.0000 CENTIMETER

Package 2 weight

5.5690 KILOGRAM

Unit type of package 3

P06

Package 3 height

75.0000 CENTIMETER

Package 3 width

80.0000 CENTIMETER

Package 3 length

60.0000 CENTIMETER

Package 3 weight

97.1040 KILOGRAM

Brand

Telemecanique

Description

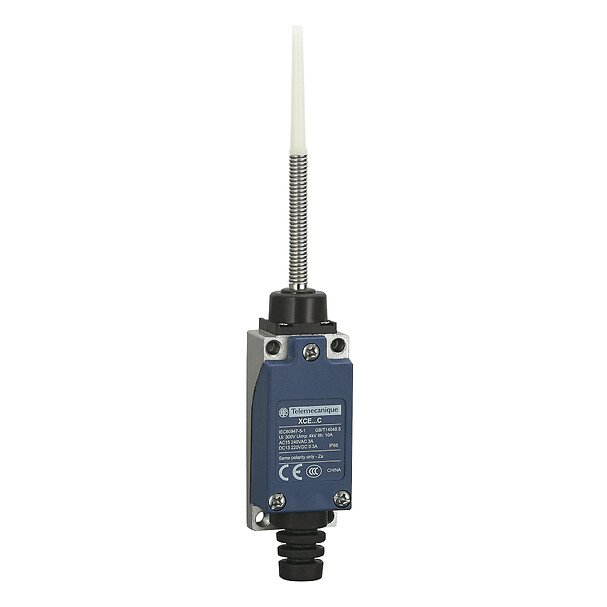

Telemecanique XCE181C Basic Limit Switch

The Telemecanique XCE181C Basic Limit Switch offers reliable performance and precise operation for a range of applications. With a medium-duty design and multi-directional head, this switch provides flexibility and durability. The plastic and metal body construction ensures longevity, while the snap action switch actuation delivers quick and efficient performance. The IP65 degree of protection and shock resistance make this switch ideal for demanding environments.

Reliable Performance: Ensure consistent and accurate operation.
Flexible Design: Multi-directional head allows for versatile usage.
Durable Construction: Plastic and metal body for long-lasting durability.
Efficient Operation: Snap action switch actuation for quick response.
Ideal for Demanding Environments: IP65 protection and shock resistance for reliability.
